Donaldson® P563165 IDI_149508

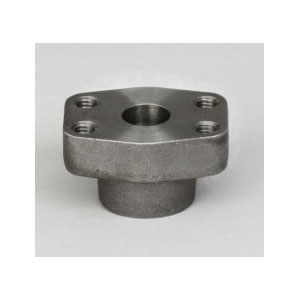

Donaldson P563165 Flange (OEM)

Donaldson® P563165 Flat Face Flange, 1-5/16-12 Connection, Code 61 UN/UNF-2B Connection

Donaldson® P563165 Flat Face Flange, 1-5/16-12 Connection, Code 61 UN/UNF-2B Connection P563165

Donaldson® Flat Face Flange, 1-5/16-12 Connection, Code 61 UN/UNF-2B Connection, 250 deg F Operating, 2.76 in H x 2.17 in W, Specifications: 4-Bolts, 1 in Port and Pad, 0.98 in Dia Pipe, For Use With: In-Line Cartridge Filter

Connection Size      :      1-5/16-12
Connection Type      :      Code 61 UN/UNF-2B
Dimensions      :      2.76 in H x 2.17 in W
Operating Temperature      :      250 deg F
Specifications      :      4-Bolts, 1 in Port and Pad, 0.98 in Dia Pipe
Suitable For Use With      :      In-Line Cartridge Filter
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P563165_Specification_Sheet.pdf
