Donaldson® P563197 IDI_149520

Donaldson P563197 Test Point (OEM)

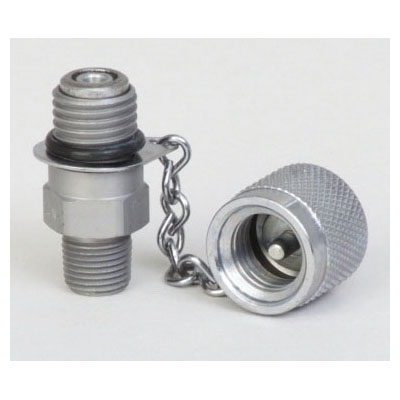

Donaldson® TPP-1215 P563197 Test Point, 1/8 in Connection, FNPT Connection, Nitrile/Plastic

Donaldson® TPP-1215 P563197 Test Point, 1/8 in Connection, FNPT Connection, Nitrile/Plastic P563197

Donaldson® Test Point, Series: TPP-1215, 1/8 in Connection, FNPT Connection, 5800 psi, -22 to 212 deg F Operating, Nitrile/Plastic, 1.61 in L, For Use With: In-Line Cartridge Filter

Connection Size      :      1/8 in
Connection Type      :      FNPT
Dimensions      :      1.61 in L
Material      :      Nitrile/Plastic
Operating Temperature      :      -22 to 212 deg F
Pressure Rating      :      5800 psi
Series      :      TPP-1215
Suitable For Use With      :      In-Line Cartridge Filter
  • Test points can be used as a connection into the hydraulic system on the suction side, pressure side or return
  • They allow connection for pressure transducers and provide ports for fluid sampling (so you can monitor cleanliness and keep your system operating optimally)
  • If you have filters installed in hard to access locations, test points and hose assemblies can be used to plumb up a bulkhead to read pressure differentials
  • Leak-free connection at full pressure
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P563197_Specification_Sheet.pdf
