Donaldson® P563219 IDI_149527

Donaldson P563219 Test Point (OEM)

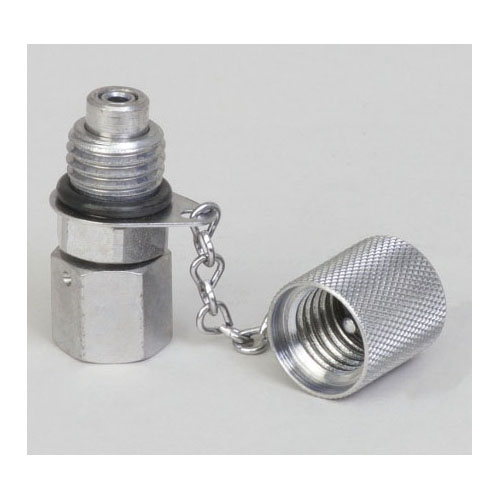

Donaldson® TPM-1620 P563219 Test Point, #4 Connection, JICF Connection, Metal/Nitrile

Donaldson® TPM-1620 P563219 Test Point, #4 Connection, JICF Connection, Metal/Nitrile P563219

Donaldson® Test Point, Series: TPM-1620, #4 Connection, JICF Connection, 8100 psi, -22 to 248 deg F Operating, Metal/Nitrile, 2.09 in L, For Use With: In-Line Cartridge Filter

Connection Size      :      #4
Connection Type      :      JICF
Dimensions      :      2.09 in L
Material      :      Metal/Nitrile
Operating Temperature      :      -22 to 248 deg F
Pressure Rating      :      8100 psi
Series      :      TPM-1620
Suitable For Use With      :      In-Line Cartridge Filter
  • Test points can be used as a connection into the hydraulic system on the suction side, pressure side or return
  • They allow connection for pressure transducers and provide ports for fluid sampling (so you can monitor cleanliness and keep your system operating optimally)
  • If you have filters installed in hard to access locations, test points and hose assemblies can be used to plumb up a bulkhead to read pressure differentials
  • Leak-free connection at full pressure
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P563219_Specification_Sheet.pdf
