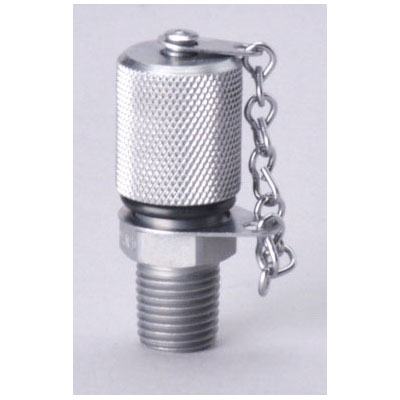

Donaldson P563220 Test Point (OEM)
Donaldson® TPM-1620 P563220 Test Point, 1/4 in Connection, FNPT Connection, Metal/Nitrile
Donaldson® TPM-1620 P563220 Test Point, 1/4 in Connection, FNPT Connection, Metal/Nitrile P563220- Brand Name: Donaldson®
- Part Number: P563220
- UPC: 742330157510
- Check Stock
-
$31.00
Add To Favorites ListDonaldson® Test Point, Series: TPM-1620, 1/4 in Connection, FNPT Connection, 9000 psi, -22 to 248 deg F Operating, Metal/Nitrile, 1.97 in L, For Use With: In-Line Cartridge Filter
| Connection Size | : | 1/4 in |
| Connection Type | : | FNPT |
| Dimensions | : | 1.97 in L |
| Material | : | Metal/Nitrile |
| Operating Temperature | : | -22 to 248 deg F |
| Pressure Rating | : | 9000 psi |
| Series | : | TPM-1620 |
| Suitable For Use With | : | In-Line Cartridge Filter |
- Test points can be used as a connection into the hydraulic system on the suction side, pressure side or return
- They allow connection for pressure transducers and provide ports for fluid sampling (so you can monitor cleanliness and keep your system operating optimally)
- If you have filters installed in hard to access locations, test points and hose assemblies can be used to plumb up a bulkhead to read pressure differentials
- Leak-free connection at full pressure
