Donaldson® P563358 IDI_149591

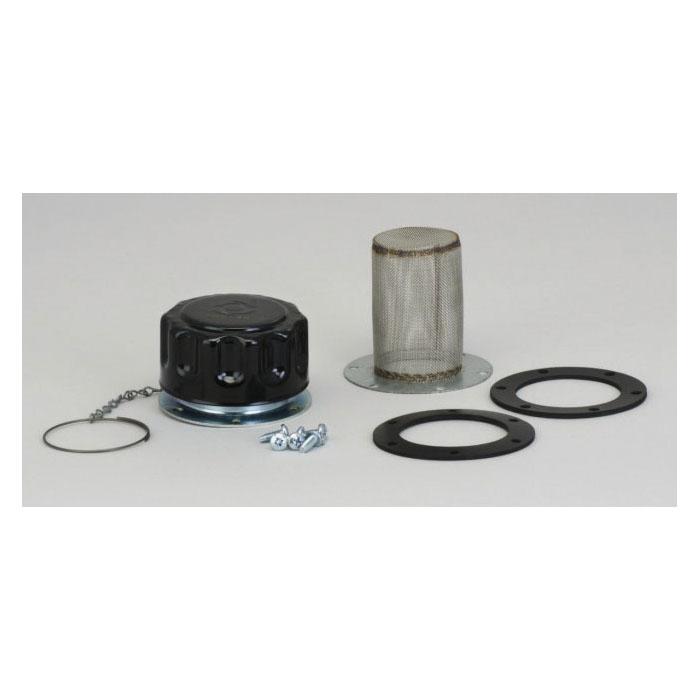

Donaldson P563358 Filler Breather Assembly (OEM)

Donaldson® PBB P563358 Filler Breather Assembly, 30 cfm Air Flow, 40 um, Flange Mounting, Steel Cap, 3.15 in OD

Donaldson® PBB P563358 Filler Breather Assembly, 30 cfm Air Flow, 40 um, Flange Mounting, Steel Cap, 3.15 in OD P563358

Donaldson® Filler Breather Assembly, Series: PBB, Bayonet Connection, 30 cfm Air Flow Capacity, 40 um, Steel Cap, Flange Mounting, -22 to 240 deg F Operating, Epoxy-Coated Cap, Black Cap, 3.15 in OD, 5.08 in Overall Height, For Use With: Reservoir

Air Flow Capacity      :      30 cfm
Cap Color      :      Black
Cap Finish      :      Epoxy-Coated
Cap Material      :      Steel
Connection Type      :      Bayonet
Micron Rating      :      40 um
Mounting Type      :      Flange
Operating Temperature      :      -22 to 240 deg F
Outside Diameter      :      3.15 in
Overall Height      :      5.08 in
Series      :      PBB
Suitable For Use With      :      Reservoir
  • Air intake valve opens at 0.435 psi
  • Compatible with petroleum based fluids
  • Nitrile gaskets standard
  • Relief valve settings at 5 or 10 psi full rate flow
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P563358_Specification_Sheet.pdf
