Donaldson® P564892 IDI_149680

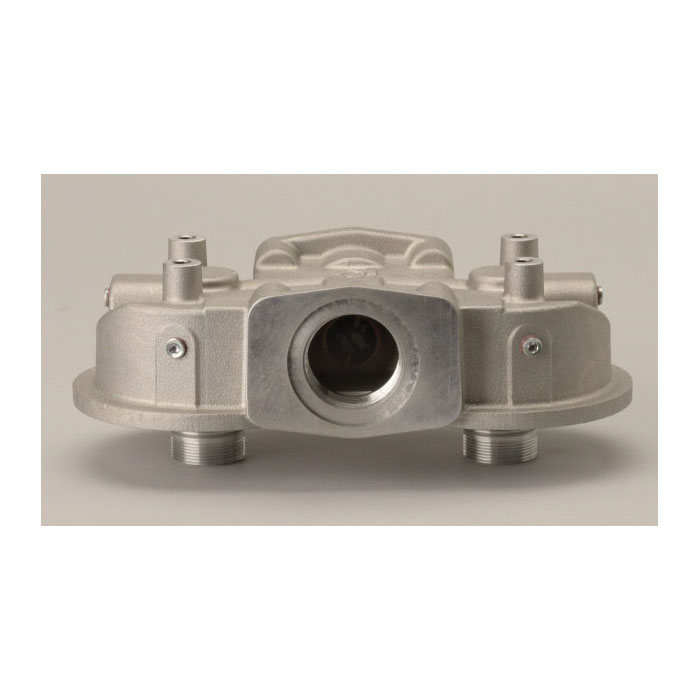

Donaldson P564892 Head Assembly, Hydraulic (OEM)

Donaldson® Clean Solutions P564892 Hydraulic Head Assembly, SAE 24 Port, 100 gpm, 25 psi Pressure, Fluorocarbon Seal

Donaldson® Clean Solutions P564892 Hydraulic Head Assembly, SAE 24 Port, 100 gpm, 25 psi Pressure, Fluorocarbon Seal P564892

Donaldson® Clean Solutions heads feature robust, aluminum construction. Combined with the proper Clean Solutions filters, these heads are an integral part of ensuring your critical equipment receives the cleanest possible fuel and oil.
Donaldson® Hydraulic Head Assembly, Series: Clean Solutions, SAE 24 Port, 100 gpm Flow Rate, 25 psi, Fluorocarbon Seal, Aluminum Head, 5.71 in Overall Height, For Use With: SP80/90 Spin-On Filters

Flow Rate      :      100 gpm
Head Material      :      Aluminum
Overall Height      :      5.71 in
Port Size      :      SAE 24
Pressure Rating      :      25 psi
Seal Material      :      Fluorocarbon
Series      :      Clean Solutions
Suitable For Use With      :      SP80/90 Spin-On Filters
  • Aluminum head with steel inserts to minimize metal-to-metal bonding or galling between the head and filter
  • Fluorocarbon seals are compatible with most fluids
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P564892_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/yy6MU1jqSeU?list=PLKk8NIsN95-bED4I44iVhmNPxU3rY3qV7
