Donaldson® P565060 IDI_149683

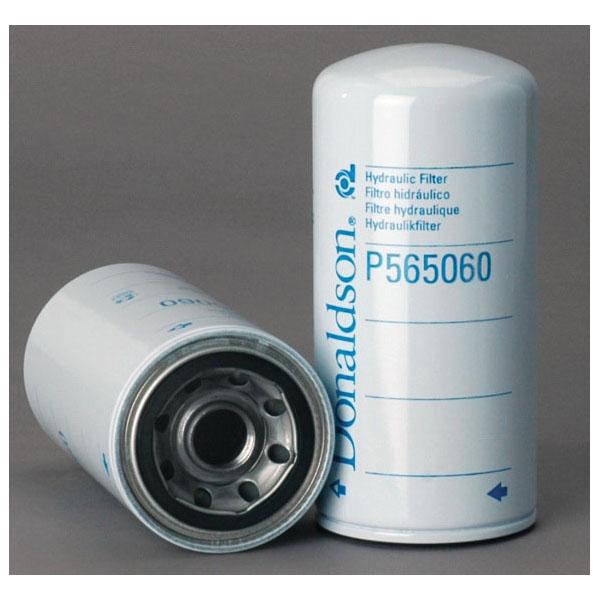

Donaldson P565060 Hydraulic Filter, Spin-On (OEM)

Donaldson® SP15/25 P565060 Spin-On Hydraulic Filter, #1-12 Port, UN Port Connection, 30 gpm

Donaldson® SP15/25 P565060 Spin-On Hydraulic Filter, #1-12 Port, UN Port Connection, 30 gpm P565060

The SP15/25 series are economical, low pressure filters with spin-on convenience and a wide range of cleanliness ratings. Filters are available with the bypass ratings of your choice - 25 psi, 15 psi, 5 psi or no bypass. Take advantage of our mix and match system of instock heads and filters, so you can get exactly what you need. Choose the media type and configuration that’s best for your application. Options include Donaldson® exclusive Synteq™ , natural fiber cellulose, stainless steel wiremesh or water absorbing media.
Donaldson® Spin-On Hydraulic Filter, Series: SP15/25, #1-12 Port, UN Port Connection, Cellulose Media, 17 um at Beta 2, 32 um at Beta 200, 30 gpm Flow Rate, 150 psi, -22 to 225 deg F Operating, 3.66 in OD, 7.87 in Overall Height, For Use With: Ingersoll Rand DD-34HF Engine Compactor, R8 Engine Compressor, John Deere 2155 3179D, 2355N, 2555 4239T and 2855N Engine Tractors

Flow Rate      :      30 gpm
Media Type      :      Cellulose
Micron Rating      :      17 um at Beta 2, 32 um at Beta 200
Operating Temperature      :      -22 to 225 deg F
Outside Diameter      :      3.66 in
Overall Height      :      7.87 in
Port Connection Type      :      UN
Port Size      :      #1-12
Pressure Rating      :      150 psi
Series      :      SP15/25
Suitable For Use With      :      Ingersoll Rand DD-34HF Engine Compactor, R8 Engine Compressor, John Deere 2155 3179D, 2355N, 2555 4239T and 2855N Engine Tractors
  • The SP15/25 series are economical, low pressure filters with spin-on convenience and a wide range of cleanliness ratings
  • Mix and match system of in stock heads and filters
  • No bypass
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P550274_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P565060_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
