Donaldson® P565242 IDI_149697

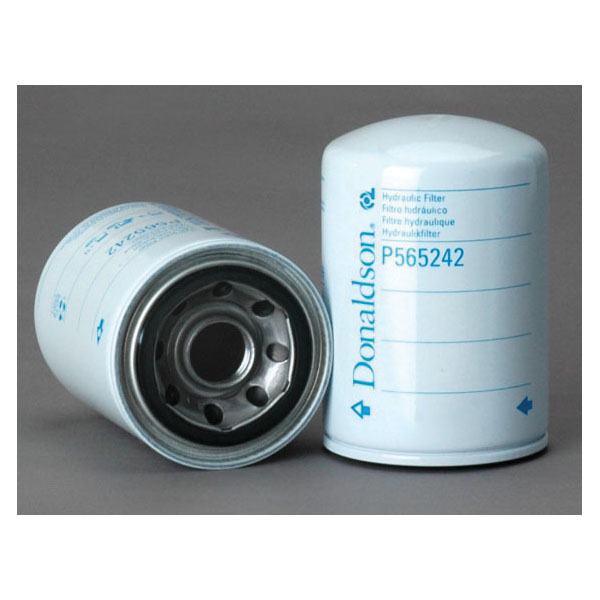

Donaldson P565242 Hydraulic Filter, Spin-On (OEM)

Donaldson® TT15/30/60 P565242 Spin-On Hydraulic Filter, 3/4 in Port, BSP, G Port Connection, 50 gpm

Donaldson® TT15/30/60 P565242 Spin-On Hydraulic Filter, 3/4 in Port, BSP, G Port Connection, 50 gpm P565242

We offer a wide range of filters that are specifically designed to perform in a broad array of hydraulic applications. Our standard filters include technology that's designed to consistently meet required specifications and your expectations. Many filters offer a choice of standard or high performance alternatives. Choose the one that's right for your application based upon your fluid characteristics and your efficiency requirements.
Donaldson® Spin-On Hydraulic Filter, Series: TT15/30/60, 3/4 in Port, BSP, G Port Connection, Cellulose Media, 7 um at Beta 2, 23 um at Beta 1000, 50 gpm Flow Rate, 100 psi, 22 psi Bypass Pressure, -22 to 225 deg F Operating, Nitrile Seal, 3.66 in OD, 5.35 in Overall Height, For Use With: New Holland TC56, TF42 Iveco 8361T, TF44 and TF46 Engine Combine

Bypass Pressure      :      22 psi
Flow Rate      :      50 gpm
Media Type      :      Cellulose
Micron Rating      :      7 um at Beta 2, 23 um at Beta 1000
Operating Temperature      :      -22 to 225 deg F
Outside Diameter      :      3.66 in
Overall Height      :      5.35 in
Port Connection Type      :      BSP, G
Port Size      :      3/4 in
Pressure Rating      :      100 psi
Seal Material      :      Nitrile
Series      :      TT15/30/60
Suitable For Use With      :      New Holland TC56, TF42 Iveco 8361T, TF44 and TF46 Engine Combine
  • TT15/30/60 tank top filters are designed for industrial service
  • Used with mineral and synthetic based fluids, these return filters conveniently mount to tank tops with four-screws
  • Common holes are used to mount the filter head to the reservoir without welding
  • A down pipe is attached to a threaded port and the gasket surface provides a watertight seal
  • Each filter provides a new bypass valve and anti-drainback valve for easy filter change
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P565242_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
