Donaldson® P566024 IDI_149711

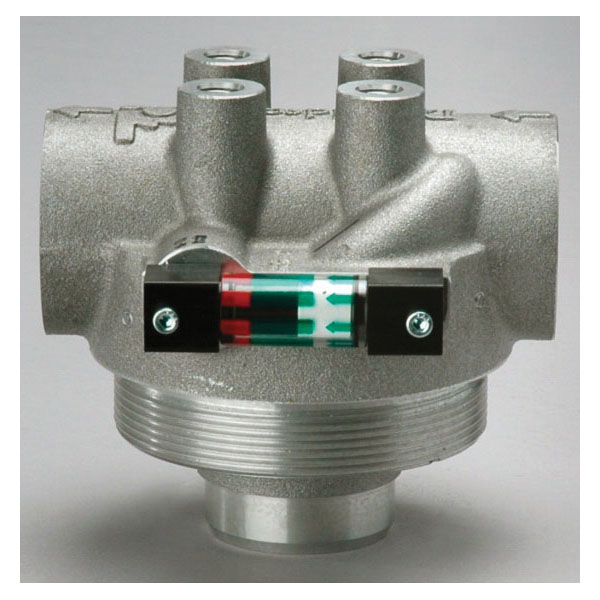

Donaldson P566024 Clean Solutions Point-Of-Use Filter Head (OEM)

Donaldson® Clean Solutions P566024 Head Assembly, SAE 16 Port, 50 gpm, 50 psi LR, 49 psi HR Pressure, Aluminum Head

Donaldson® Clean Solutions P566024 Head Assembly, SAE 16 Port, 50 gpm, 50 psi LR, 49 psi HR Pressure, Aluminum Head P566024

Donaldson® Clean Solutions heads feature robust, aluminum construction. Combined with the proper Clean Solutions filters, these heads are an integral part of ensuring your critical equipment receives the cleanest possible fuel and oil.
Donaldson® Head Assembly, Series: Clean Solutions, SAE 16 Port, 50 gpm Flow Rate, 50 psi LR, 49 psi HR, Fluorocarbon Seal, Aluminum Head, 4.29 in Overall Height, For Use With: Bulk HP Filters

Flow Rate      :      50 gpm
Head Material      :      Aluminum
Overall Height      :      4.29 in
Port Size      :      SAE 16
Pressure Rating      :      50 psi LR, 49 psi HR
Seal Material      :      Fluorocarbon
Series      :      Clean Solutions
Suitable For Use With      :      Bulk HP Filters
  • Aluminum head with steel inserts to minimize metal-to-metal bonding or galling between the head and filter
  • Fluorocarbon seals are compatible with most fluids
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P566024_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/yy6MU1jqSeU?list=PLKk8NIsN95-bED4I44iVhmNPxU3rY3qV7
