Donaldson® P566037 IDI_149712

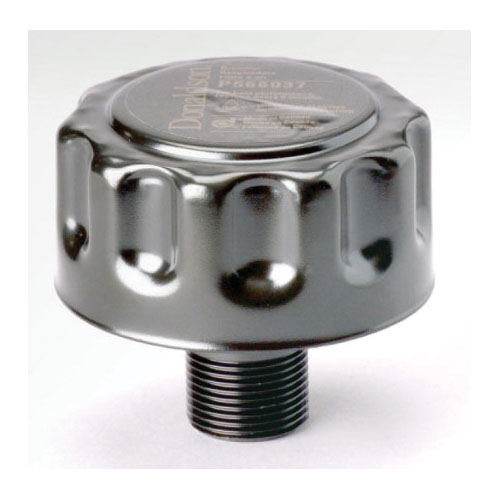

Donaldson P566037 Breather, Trap (OEM)

Donaldson® T.R.A.P.™ P566037 Medium Self-Regenerating Breather With Oil/Splash Containment, 3/4 in Connection, 3 um

Donaldson® T.R.A.P.™ P566037 Medium Self-Regenerating Breather With Oil/Splash Containment, 3/4 in Connection, 3 um P566037

T.R.A.P.™ (thermally reactive advanced protection) breathers provide fast-acting protection against airborne moisture and particulate contamination. T.R.A.P.™ technology strips moisture vapor from intake air and expels the moisture back to the atmosphere. Moisture is prevented from entering and is actually "pumped" out with each flow cycle. The media regenerates its water holding capacity, which leads to longer service life 3 to 4 times the life of conventional desiccant breathers.
Donaldson® T.R.A.P.™ Medium Self-Regenerating Breather With Oil/Splash Containment, 3/4 in Connection, BSP, G Connection, 25 cfm Air Flow Capacity, 3 um, 98 % Efficiency, Steel Cap, 40 to 200 deg F Operating, Epoxy-Coated Cap, 3.18 in OD, 2.85 in Overall Height, For Use With: Epiroc MT65 Cummins® QSK19 Engine Haul Trucks

Air Flow Capacity      :      25 cfm
Cap Finish      :      Epoxy-Coated
Cap Material      :      Steel
Connection Size      :      3/4 in
Connection Type      :      BSP, G
Efficiency      :      98 %
Micron Rating      :      3 um
Operating Temperature      :      40 to 200 deg F
Outside Diameter      :      3.18 in
Overall Height      :      2.85 in
Suitable For Use With      :      Epiroc MT65 Cummins® QSK19 Engine Haul Trucks
  • Filter out solid particulate down to 3 um at 97% efficiency
  • Prevent moisture from entering the reservoir
  • Water holding capacity is regenerated with every oil return phase for long service life
  • Moisture removal - reversible adsorption
  • Strips moisture vapor from intake air and expel the moisture back to the atmosphere
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P566037_Specification_Sheet.pdf
