Donaldson® P566274 IDI_149804

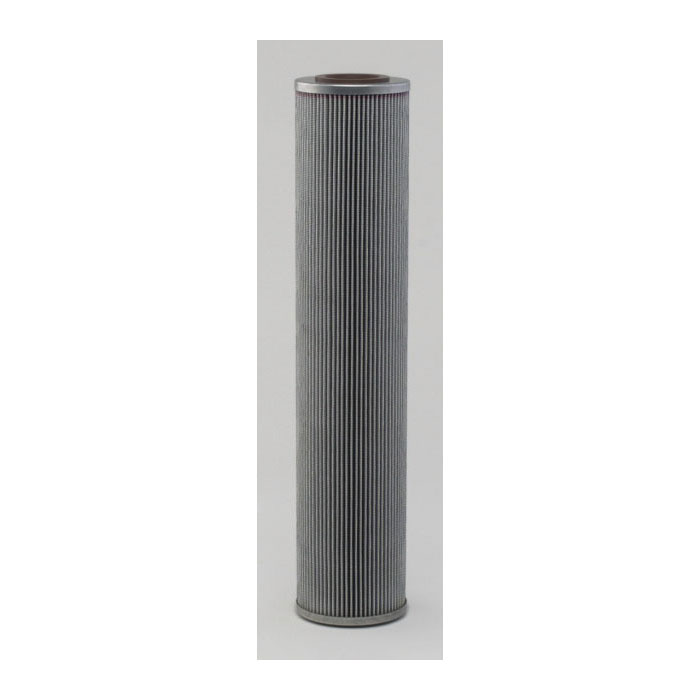

Donaldson P566274 Hydraulic Filter, Cartridge DT (OEM)

Donaldson® DT High-Performance P566274 Hydraulic Filter Cartridge, 5 um at Efficiency Beta 1000, 150 gpm, 3.85 in OD

Donaldson® DT High-Performance P566274 Hydraulic Filter Cartridge, 5 um at Efficiency Beta 1000, 150 gpm, 3.85 in OD P566274

Donaldson® Hydraulic Filter Cartridge, Series: DT High-Performance, Synthetic Media, 5 um at Efficiency Beta 1000, 150 gpm Flow Rate, 149 psi, -45 to 250 deg F Operating, 1.61 in ID, 3.85 in OD, 18.32 in Overall Height, For Use With: WL16 and W451 In-Line Cartridge Filter

Flow Rate      :      150 gpm
Inside Diameter      :      1.61 in
Media Type      :      Synthetic
Micron Rating      :      5 um at Efficiency Beta 1000
Operating Temperature      :      -45 to 250 deg F
Outside Diameter      :      3.85 in
Overall Height      :      18.32 in
Pressure Rating      :      149 psi
Series      :      DT High-Performance
Suitable For Use With      :      WL16 and W451 In-Line Cartridge Filter
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P566274_Specification_Sheet.pdf
