Donaldson® P567392 IDI_150144

Donaldson P567392 Breather, Trap (OEM)

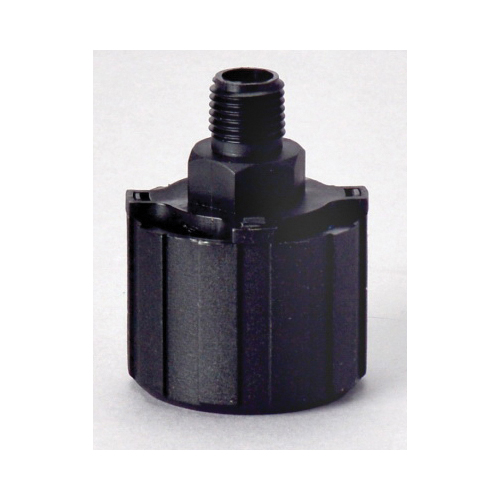

Donaldson® T.R.A.P.™ P567392 Mini Breather With Oil/Splash Containment, 1/4 in Connection, 3 cfm Air Flow, 3 um

Donaldson® T.R.A.P.™ P567392 Mini Breather With Oil/Splash Containment, 1/4 in Connection, 3 cfm Air Flow, 3 um P567392

T.R.A.P.™ (thermally reactive advanced protection) breathers provide fast-acting protection against airborne moisture and particulate contamination. T.R.A.P.™ technology strips moisture vapor from intake air and expels the moisture back to the atmosphere. Moisture is prevented from entering and is actually "pumped" out with each flow cycle. The media regenerates its water holding capacity, which leads to longer service life 3 to 4 times the life of conventional desiccant breathers.
Donaldson® T.R.A.P.™ Mini Breather With Oil/Splash Containment, 1/4 in Connection, NPT Connection, 3 cfm Air Flow Capacity, 3 um, 98 % Efficiency, Nylon Cap, 40 to 200 deg F Operating, 1.65 in OD, 2.11 in Overall Height, For Use With: FIK Series K030319 Redesigned Style A Assemblies with 4-Hole Mounting Configurations

Air Flow Capacity      :      3 cfm
Cap Material      :      Nylon
Connection Size      :      1/4 in
Connection Type      :      NPT
Efficiency      :      98 %
Micron Rating      :      3 um
Operating Temperature      :      40 to 200 deg F
Outside Diameter      :      1.65 in
Overall Height      :      2.11 in
Suitable For Use With      :      FIK Series K030319 Redesigned Style A Assemblies with 4-Hole Mounting Configurations
  • Filter out solid particulate down to 3 um at 97% efficiency
  • Prevent moisture from entering the reservoir
  • Water holding capacity is regenerated with every oil return phase for long service life
  • Moisture removal - reversible adsorption
  • Strips moisture vapor from intake air and expel the moisture back to the atmosphere
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P567392_Specification_Sheet.pdf
