Donaldson® P568932 IDI_150244

Donaldson P568932 Clean Solutions Manifold (OEM)

Donaldson® Bulk Filtration™ P568932 Bulk Fluid Manifold, 4 in Connection, ANSI Flange Connection, 500 gpm

Donaldson® Bulk Filtration™ P568932 Bulk Fluid Manifold, 4 in Connection, ANSI Flange Connection, 500 gpm P568932

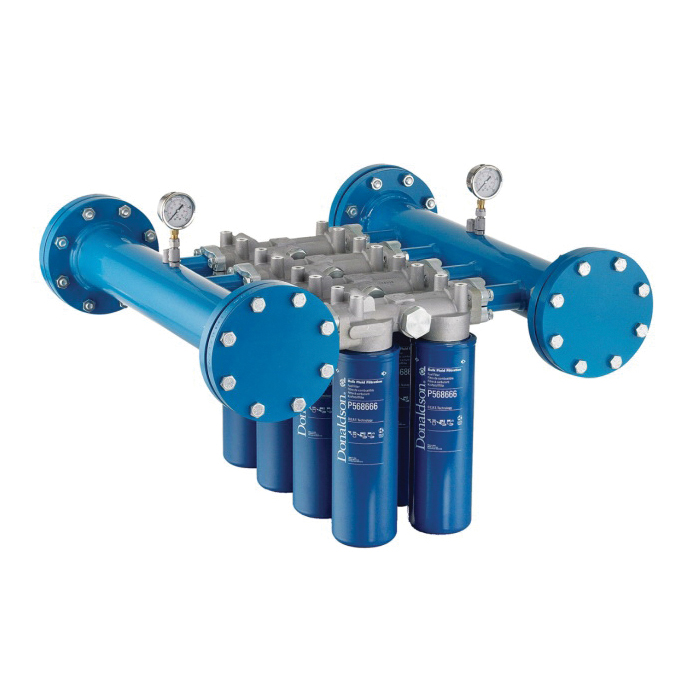

Clean solutions filter manifolds expand capacity and increase flow rate beyond the capability of a single or dual filter head. The P568932 eight filter manifold is constructed of heavy-duty carbon steel and handles flow rates of up to 500 gpm/1893 Lpm. Dividing the flow between multiple filters plumbed in parallel slows the flow rate per filter, reducing pressure drop and extending filter life. A variety of filter medias are available to meet the specific application requirements.
Donaldson® Bulk Filtration™ Bulk Fluid Manifold, 4 in Connection, ANSI Flange Connection, 500 gpm Flow Rate, 290 psi, -40 to 245 deg F Operating, Carbon Steel, Painted, Horizontal, Vertical Mounting, 32.99 in L x 24.45 in W, Specifications: 9.02 in Dia Flange, For Use With: DBB8664, DBB8665, DBB8666, DBB8777, DBB0248 Series Filter

Connection Size      :      4 in
Connection Type      :      ANSI Flange
Dimensions      :      32.99 in L x 24.45 in W
Finish      :      Painted
Flow Rate      :      500 gpm
Material      :      Carbon Steel
Mounting Type      :      Horizontal, Vertical
Operating Temperature      :      -40 to 245 deg F
Pressure Rating      :      290 psi
Specifications      :      9.02 in Dia Flange
Suitable For Use With      :      DBB8664, DBB8665, DBB8666, DBB8777, DBB0248 Series Filter
  • Fast, easy and safe to service
  • Requires no electrical or air hook-up
  • Large capacity in small foot print
  • Cost effective high capacity system
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P568932_Specification_Sheet.pdf
