Donaldson® P569204 IDI_150254

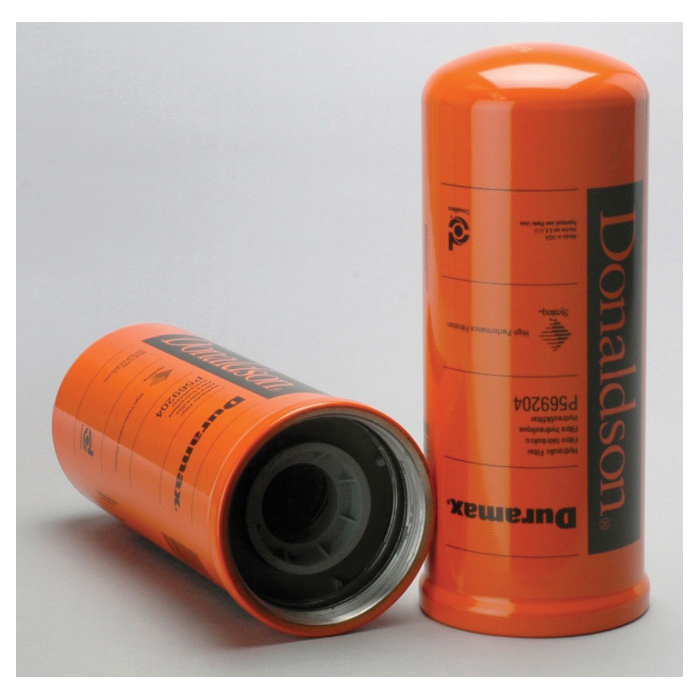

Donaldson P569204 Hydraulic Filter, Spin-On Duramax (OEM)

Donaldson® Duramax® HNK04/05 P569204 Spin-On Hydraulic Filter, M87x2.5 Port, 6 um at Beta 1000, 35 gpm, 50 gpm

Donaldson® Duramax® HNK04/05 P569204 Spin-On Hydraulic Filter, M87x2.5 Port, 6 um at Beta 1000, 35 gpm, 50 gpm P569204

HNK Duramax® filters utilize a RadialSeal™ design for easier servicing and more reliable seal without having to torque to specification. Synteq™ filter media maintains high filtration efficiency and higher dust holding capacity. Improved performance including higher burst, greater fatigue strength and longer filter life. Both the HNK04 and HNK05 are class leaders. Use the HNK05 in applications that need higher flow.
Donaldson® Duramax® Spin-On Hydraulic Filter, Series: HNK04/05, M87x2.5 Port, Synthetic Media, 6 um at Beta 1000, 35 gpm, 50 gpm Flow Rate, 500 psi, 35 psi Bypass Pressure, -25 to 250 deg F Operating, 3.69 in OD, 9.44 in Overall Height, For Use With: John Deere 8310RT, 8335RT, 8360RT 6090, 9510RT 6135 Engine Tractor Tracked and 9640RT 6135 Engine Tractors

Bypass Pressure      :      35 psi
Flow Rate      :      35 gpm, 50 gpm
Media Type      :      Synthetic
Micron Rating      :      6 um at Beta 1000
Operating Temperature      :      -25 to 250 deg F
Outside Diameter      :      3.69 in
Overall Height      :      9.44 in
Port Size      :      M87x2.5
Pressure Rating      :      500 psi
Series      :      HNK04/05
Suitable For Use With      :      John Deere 8310RT, 8335RT, 8360RT 6090, 9510RT 6135 Engine Tractor Tracked and 9640RT 6135 Engine Tractors
  • Strong, durable die cast aluminum head
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P569203_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P569204_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
