Donaldson® P573301 IDI_150480

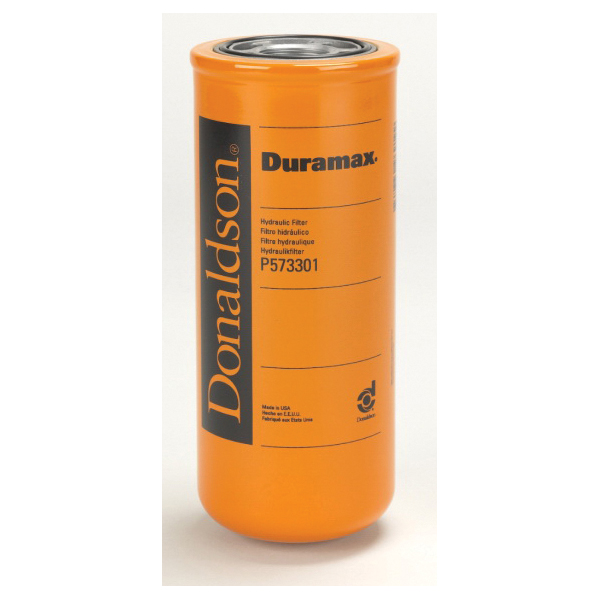

Donaldson P573301 Hydraulic Filter, Spin-On Duramax (OEM)

Donaldson® Duramax® HMK04/24 P573301 Spin-On Hydraulic Filter, 1-3/8-12 Port, UN Port Connection, 150 um at Beta 2

Donaldson® Duramax® HMK04/24 P573301 Spin-On Hydraulic Filter, 1-3/8-12 Port, UN Port Connection, 150 um at Beta 2 P573301

HMK04 (single) and HMK24 (double) Duramax® spin-on filters feature a durable die cast aluminum head, heavy-duty steel body, with die cast aluminum top plate for added strength. A special head-to-canister O-ring seal prevents leakage. Both models use the same replacement filters and have identical pressure ratings, reducing inventory. Both filters have identical pressures, but the HMK24 handles greater flow capacity than the HMK04.
Donaldson® Duramax® Spin-On Hydraulic Filter, Series: HMK04/24, 1-3/8-12 Port, UN Port Connection, Wire Mesh Media, 150 um at Beta 2, 35 gpm, 60 gpm Flow Rate, 500 psi, Die Cast Aluminum Head, Nitrile Seal, Steel Housing, 3.71 in OD, 9.44 in Overall Height, For Use With: Caterpillar 797B 3524B Engine Dump Truck, 834H C18TA Acert, 844H C27TA Acert, 854G 3508TA, 854K C32TA Acert Engine Dozer Wheeled, 988H C18TA Acert, 990 II 3412TAE1, 990H C27TA Acert and 992G 3508TA Engine Loader Wheeled

Flow Rate      :      35 gpm, 60 gpm
Head Material      :      Die Cast Aluminum
Housing Material      :      Steel
Media Type      :      Wire Mesh
Micron Rating      :      150 um at Beta 2
Outside Diameter      :      3.71 in
Overall Height      :      9.44 in
Port Connection Type      :      UN
Port Size      :      1-3/8-12
Pressure Rating      :      500 psi
Seal Material      :      Nitrile
Series      :      HMK04/24
Suitable For Use With      :      Caterpillar 797B 3524B Engine Dump Truck, 834H C18TA Acert, 844H C27TA Acert, 854G 3508TA, 854K C32TA Acert Engine Dozer Wheeled, 988H C18TA Acert, 990 II 3412TAE1, 990H C27TA Acert and 992G 3508TA Engine Loader Wheeled
  • Strong, durable die cast aluminum head and heavy-duty steel body, with die cast aluminum top plate construction
  • Special head-to-canister O-ring seal prevents leakage
  • Nitrile seals are standard
  • Both models use the same replacement filters and feature identical pressure ratings, but the HMK24 handles greater flow capacity
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P163542_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P573301_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
