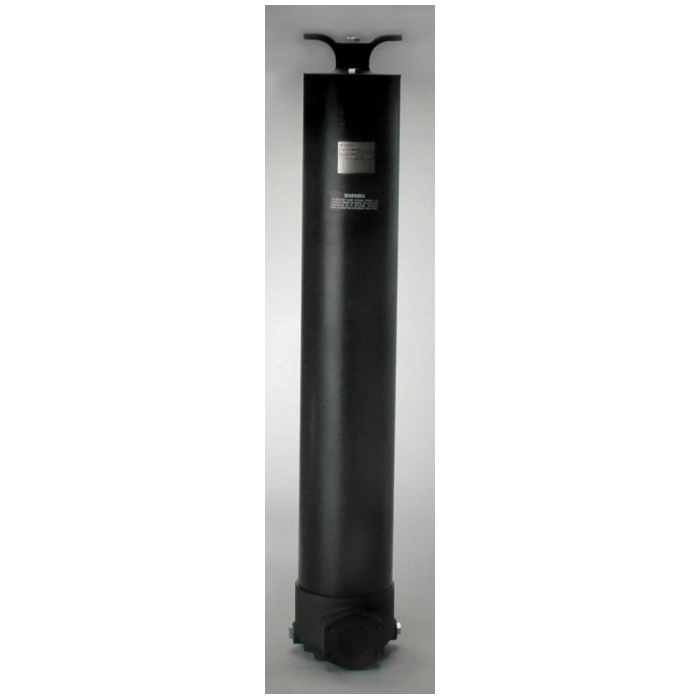

Donaldson P574219 Hydraulic Filter Assembly (OEM)

We offer a wide range of filters that are specifically designed to perform in a broad array of hydraulic applications. Our standard filters include technology that's designed to consistently meet required specifications and your expectations. Many filters offer a choice of standard or high performance alternatives. Choose the one that's right for your application based upon your fluid characteristics and your efficiency requirements.
Donaldson® Hydraulic Filter Assembly, Series: W041, 2-1/2 in, SAE 4 Port, 300 gpm Flow Rate, 25 psi LR, 51 psi HR Bypass Pressure, -20 to 250 deg F Operating, Aluminum Head, Fluorocarbon Seal, Steel Housing, Base Mounting, 48.27 in Overall Height

• The W041 high flow filter combines the best features of a base mounted assembly, several inlet port options, top cover filter servicing for ease of maintenance and a wide selection of service indicators
• The W041 all aluminum head design and plated steel cylinder provides a strong, durable and dependable unit
• We offer standard features like deep pleat filters for higher dirt holding capacity and our standard Donaldson® DT 4-layer media filter construction
• This technology, combined with many other standard features, is ideal for today's applications in pulp and paper, power generation and steel mill applications
• Thermal lockout and surge control are two key features incorporated in many of the differential pressure indicators
• Large T-handle for fast servicing without tools
• Two filter length options for design flexibility
• Two drain plugs in base
• Bleed/fill plug in cover

• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P574219_Specification_Sheet.pdf
• Video Link https://youtu.be/DouGwx_ia3o
