Donaldson® P574254 IDI_150615

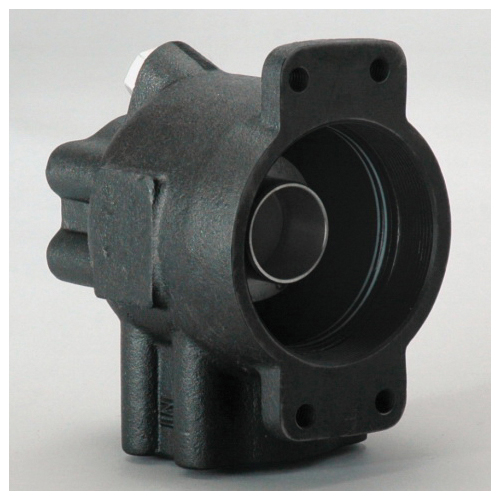

Donaldson P574254 Head Assembly, Hydraulic (OEM)

Donaldson® Clean Solutions P574254 Hydraulic Head Assembly, 1-1/2 in SAE 4-Bolt Code 61 Port, 150 gpm, 51 psi Pressure

Donaldson® Clean Solutions P574254 Hydraulic Head Assembly, 1-1/2 in SAE 4-Bolt Code 61 Port, 150 gpm, 51 psi Pressure P574254

Donaldson® Clean Solutions heads feature robust, aluminum construction. Combined with the proper Clean Solutions filters, these heads are an integral part of ensuring your critical equipment receives the cleanest possible fuel and oil.
Donaldson® Hydraulic Head Assembly, Series: Clean Solutions, 1-1/2 in SAE 4-Bolt Code 61 Port, 150 gpm Flow Rate, 51 psi, Nitrile Seal, Aluminum Head, For Use With: W620 In-Line Cartridge Filters

Flow Rate      :      150 gpm
Head Material      :      Aluminum
Port Size      :      1-1/2 in SAE 4-Bolt Code 61
Pressure Rating      :      51 psi
Seal Material      :      Nitrile
Series      :      Clean Solutions
Suitable For Use With      :      W620 In-Line Cartridge Filters
  • Aluminum head with steel inserts to minimize metal-to-metal bonding or galling between the head and filter
  • Fluorocarbon seals are compatible with most fluids
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P574254_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/yy6MU1jqSeU?list=PLKk8NIsN95-bED4I44iVhmNPxU3rY3qV7
