Donaldson® P575918 IDI_150688

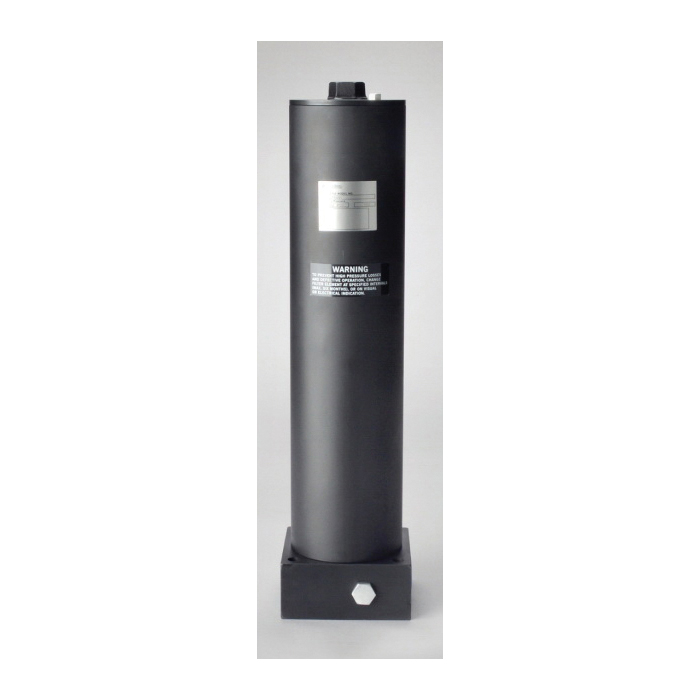

Donaldson P575918 Hydraulic Filter Assembly (OEM)

Donaldson® W451 P575918 In-Line Cartridge Filter, 1-1/2 in, SAE 4 Port, Flange Port Connection, 150 gpm

Donaldson® W451 P575918 In-Line Cartridge Filter, 1-1/2 in, SAE 4 Port, Flange Port Connection, 150 gpm P575918

The W451 base mounted filter series provides for easy servicing featuring top cover access for filter change out. Ductile iron filter head design provides for SAE ports along with optional space saving manifold mounting. This product features the popular HF4 automotive filter.
Donaldson® In-Line Cartridge Filter, Series: W451, 1-1/2 in, SAE 4 Port, Flange Port Connection, 150 gpm Flow Rate, 4500 psi, -45 to 250 deg F Operating, Ductile Iron Head, Fluorocarbon Seal, Steel Housing, Base Mounting, 5-1/2 in OD, 24.68 in Overall Height

Flow Rate      :      150 gpm
Head Material      :      Ductile Iron
Housing Material      :      Steel
Mounting Type      :      Base
Operating Temperature      :      -45 to 250 deg F
Outside Diameter      :      5-1/2 in
Overall Height      :      24.68 in
Port Connection Type      :      Flange
Port Size      :      1-1/2 in, SAE 4
Pressure Rating      :      4500 psi
Seal Material      :      Fluorocarbon
Series      :      W451
  • Meets HF4 specification
  • Differential pressure indicators line works with an assortment of bypass valves
  • Thermal lockout and surge control are available in many of the differential pressure indicators
  • High collapse filter available for use with non-bypass applications
  • Three housing length options for design flexibility
  • Top cover access for easy servicing
  • Base drain plug
  • Cover bleed/fill plug
  • Fluorocarbon seals are standard
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P574220_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P575918_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
