Donaldson® P764183 IDI_151239

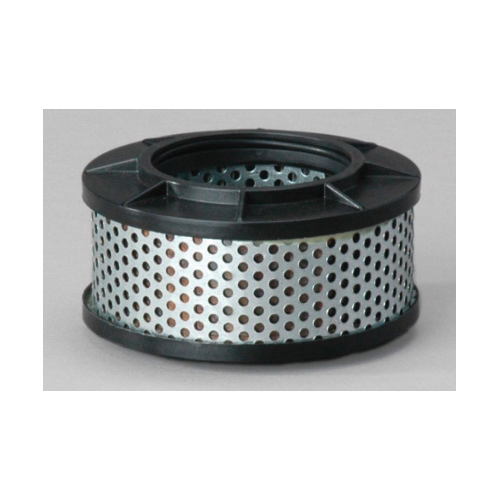

Donaldson P764183 Hydraulic Filter, Cartridge (OEM)

Donaldson® P764183 Hydraulic Filter Cartridge, 1 um at Efficiency Beta 2, 79 gpm, 145 psi Pressure, 3.9 in OD

Donaldson® P764183 Hydraulic Filter Cartridge, 1 um at Efficiency Beta 2, 79 gpm, 145 psi Pressure, 3.9 in OD P764183

Donaldson® Hydraulic Filter Cartridge, Wire Mesh Media, 1 um at Efficiency Beta 2, 79 gpm Flow Rate, 145 psi, -22 to 212 deg F Operating, 2.61 in ID, 3.9 in OD, 1.98 in Overall Height, For Use With: SRK Suction/Return Combination In-Tank Filters, John Deere 1010D 4045HTJ, 4045H Engine, 1110D 6068H, 6068HTJ Engine Forwarder, 1070D 6068H, 1490D 6068HTJ Engine Hervester and 1270E 6090H Engine Forestry Equipment

Flow Rate      :      79 gpm
Inside Diameter      :      2.61 in
Media Type      :      Wire Mesh
Micron Rating      :      1 um at Efficiency Beta 2
Operating Temperature      :      -22 to 212 deg F
Outside Diameter      :      3.9 in
Overall Height      :      1.98 in
Pressure Rating      :      145 psi
Suitable For Use With      :      SRK Suction/Return Combination In-Tank Filters, John Deere 1010D 4045HTJ, 4045H Engine, 1110D 6068H, 6068HTJ Engine Forwarder, 1070D 6068H, 1490D 6068HTJ Engine Hervester and 1270E 6090H Engine Forestry Equipment
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P764183_Specification_Sheet.pdf
