Donaldson® P765662 IDI_151258

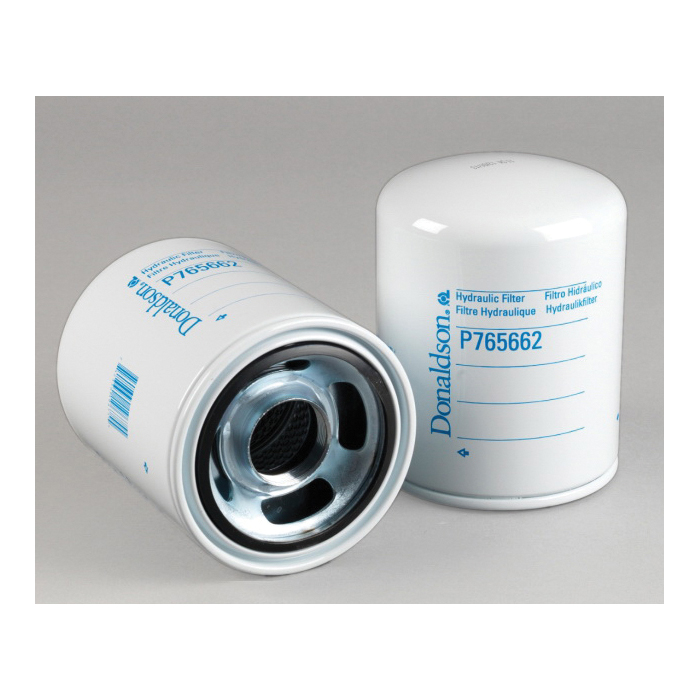

Donaldson P765662 Hydraulic Filter, Spin-On (OEM)

Donaldson® P765662 Spin-On Hydraulic Filter, 1-3/4-16 Port, UN Port Connection, 42 um at Beta 200, 50 um at Beta 1000

Donaldson® P765662 Spin-On Hydraulic Filter, 1-3/4-16 Port, UN Port Connection, 42 um at Beta 200, 50 um at Beta 1000 P765662

Anything but standard hydraulic performance. We offer a complete line of hydraulic filters and cartridges for low, medium and high pressure applications. Each is also available in a range of media efficiencies to meet specific application requirements.
Donaldson® Spin-On Hydraulic Filter, 1-3/4-16 Port, UN Port Connection, Synthetic Media, 42 um at Beta 200, 50 um at Beta 1000, 12 psi Bypass Pressure, 5.32 in OD, 6.9 in Overall Height, For Use With: Case/Case IH 65C, 75V, New Holland T4.105 and T4.65 FPT Industrial F5C Engine Tractors

Bypass Pressure      :      12 psi
Media Type      :      Synthetic
Micron Rating      :      42 um at Beta 200, 50 um at Beta 1000
Outside Diameter      :      5.32 in
Overall Height      :      6.9 in
Port Connection Type      :      UN
Port Size      :      1-3/4-16
Suitable For Use With      :      Case/Case IH 65C, 75V, New Holland T4.105 and T4.65 FPT Industrial F5C Engine Tractors
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P765662_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/DouGwx_ia3o
