Donaldson® P777151 IDI_151406

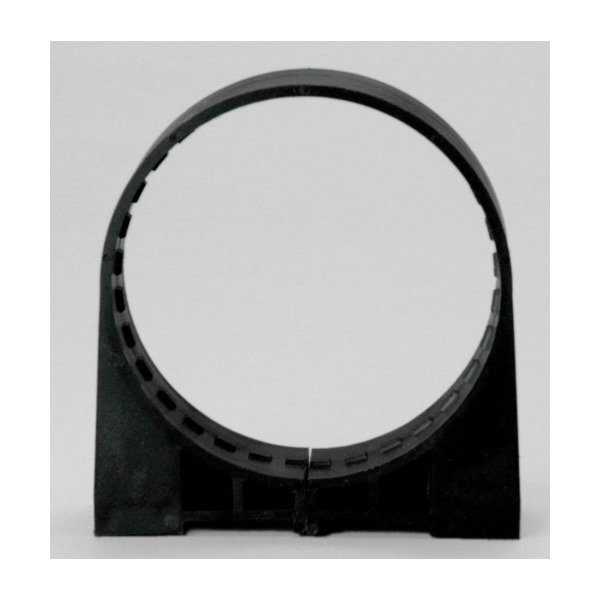

Donaldson P777151 Mounting Band, Plastic (OEM)

Donaldson® P777151 Mounting Band, Polymer, For Use With: PowerPleat™ G052828, G052829 and G052741 Air Cleaners

Donaldson® P777151 Mounting Band, Polymer, For Use With: PowerPleat™ G052828, G052829 and G052741 Air Cleaners P777151

The one-piece, high tech polymer mounting band will securely hold the housing in position. The band has tabs on the inside circumference which fit exactly into notches on the FPG housing. The band tightens around the air cleaner when the base of the band is bolted to a support, providing a fixed, stable mounting - even in high vibration applications. Donaldson® polymer bands are completely non-corrosive, lightweight, easy to install and economical.
Donaldson® Mounting Band, Specifications: 4.56 in Bolt Hole Center Spacing, 3.09 in H Center, 12 ft-lb Maximum Belt Torque, Polymer, 4.8 in Diameter, 1.57 in Width, For Use With: PowerPleat™ G052828, G052829 and G052741 Air Cleaners

Diameter      :      4.8 in
Material      :      Polymer
Specifications      :      4.56 in Bolt Hole Center Spacing, 3.09 in H Center, 12 ft-lb Maximum Belt Torque
Suitable For Use With      :      PowerPleat™ G052828, G052829 and G052741 Air Cleaners
Width      :      1.57 in
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_H000165_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_P777151_Specification_Sheet.pdf
