Donaldson® X002220 IDI_151684

Donaldson X002220 Restriction Indicator Kit (OEM)

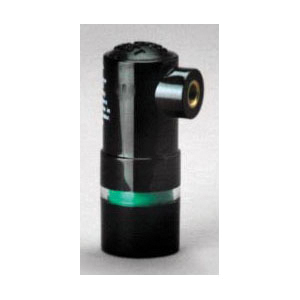

Donaldson® X002220 Visual Restriction Indicator, 1/8-27 Thread

Donaldson® X002220 Visual Restriction Indicator, 1/8-27 Thread X002220

This indicator can be mounted directly on the air cleaner or remotely on the instrument panel or firewall. When restriction limit is reached and filter service is needed, easily-visible, bright red shows through the full view window. After the filter is serviced, reset via rubber button on top.
Donaldson® Visual Restriction Indicator, Specifications: NPT Connection, 20 in H2O Restriction Limit, 1/8-27 Thread, 1.4 in Diameter, 3.62 in Height

Diameter      :      1.4 in
Height      :      3.62 in
Specifications      :      NPT Connection, 20 in H2O Restriction Limit
Thread Size      :      1/8-27
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_X002220_Specification_Sheet.pdf
