Donaldson® 175501-00125 IDI_151828

Donaldson X220032 Filter Minder-Indicators-Mechanical-Air (OEM)

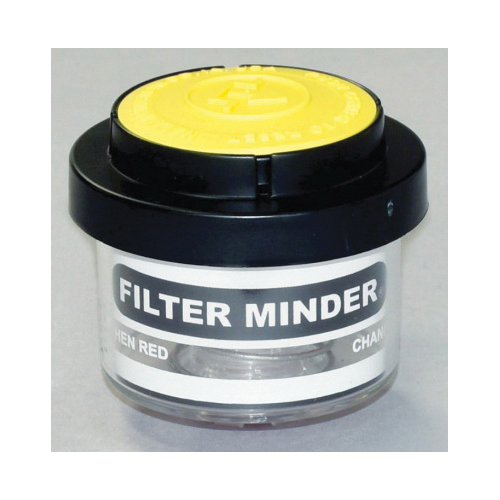

Donaldson® Filter Minder® 175501-00125 Single Position Indicator, 1/8-27 Thread

Donaldson® Filter Minder® 175501-00125 Single Position Indicator, 1/8-27 Thread 175501-00125

Single position indicators continuously monitor air filter restriction. Also known as go/no-go indicators, these units show whether maximum air filter restriction has or has not been reached. When maximum restriction has been reached, the unit either changes color to red or displays an orange or red flag, depending on the model. The window turns red when the maximum air filter restriction has been reached. Indicator is reset by pushing the yellow button.
Donaldson® Filter Minder® Single Position Indicator, Specifications: NPT Connection, 24.98 in H2O Restriction Limit, -40 to 250 deg F Operating Temperature Rating, 1/8-27 Thread, 1.99 in Diameter, 1.89 in Length

Diameter      :      1.99 in
Length      :      1.89 in
Specifications      :      NPT Connection, 24.98 in H2O Restriction Limit, -40 to 250 deg F Operating Temperature Rating
Thread Size      :      1/8-27
  • It can be mounted directly to the air cleaner housing in any orientation
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Donaldson_175501_00125_Specification_Sheet.pdf
