EATON 3032V 3032V

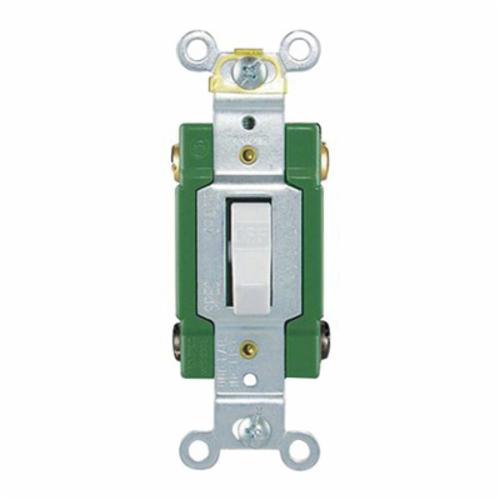

EATON 3032V Toggle Switch

EATON 3032V Toggle Switch, 120/277 VAC, 30 A, 2 hp

EATON 3032V Toggle Switch, 120/277 VAC, 30 A, 2 hp 3032V

Industrial grade toggle switches incorporate the most durable design elements in the industry and are horsepower rated to handle motor loads. Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections. Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure. Ground screw terminal standard. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications. Combination slot/Phillips head mounting and terminal screws ease installation with power screwdrivers. Tri-combo screws.

Amperage Rating      :      30 A
Body Material      :      Polycarbonate
Color      :      Ivory
Connection Type      :      Back Wired, Screw Terminal, Side Wired
Depth      :      1.31 in
Height      :      1.05 in
Mounting Type      :      Wall
Number of Poles      :      2
Operating Cycles      :      30000 cycles
Power Rating      :      2 hp
Temperature Rating      :      -20 to 60 deg C
Voltage Rating      :      120/277 VAC
Width      :      3.28 in
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure
  • Easy access grounding terminal
  • One-piece brass contact arm and large silver alloy contact assures low-resistance switching
  • Patent-pending spring cup toggle design for consistent positive activation
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/EATON_3032V_Specification_Sheet.pdf
