EATON BR24L70FP BR24L70FP

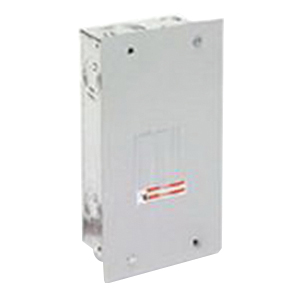

EATON BR24L70FP Main Lug Load Center

EATON BR24L70FP Main Lug Load Center, 70 A, 120/240 VAC, 10 kA Interrupt

EATON BR24L70FP Main Lug Load Center, 70 A, 120/240 VAC, 10 kA Interrupt BR24L70FP

Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Additional Information      :      Tin-Plated Busbar
Amperage Rating      :      70 A
Breaker Type      :      BR
Dimensions      :      9.44 in H x 4.5 in W x 3 in D
Enclosure Type      :      NEMA 1
Interrupt Rating      :      10 kA
Material      :      Aluminum
Mounting Type      :      Flush
Number of Circuits      :      4
Number of Spaces      :      2
Phase      :      1 ph
Voltage Rating      :      120/240 VAC
Wire Size      :      8 to 2 AWG
Wiring Configuration      :      3-Wire
  • Current design
  • Larger knockout provides easier installation and time savings
  • Straight-in wiring saves labor and material
  • One panel for either top or bottom applications
  • Easily removable and can be installed in any location on the neutral bar
  • Provides solid and reliable breaker mounting single piece design for stability and durability
  • Minimum 150% neutral capacity
  • Provides easy field conversion for service entrance applications
  • Is easily removable for sub-panel applications
  • Insulated/bondable split neutral
