EATON BR4040N200R BR4040N200R

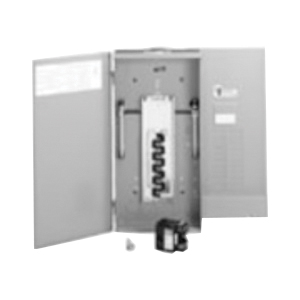

EATON BR4040N200R Convertible Main Load Center

EATON BR4040N200R Convertible Main Load Center, 200 A, 120/240 VAC, 25 kA Interrupt

EATON BR4040N200R Convertible Main Load Center, 200 A, 120/240 VAC, 25 kA Interrupt BR4040N200R

Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Additional Information      :      Tin-Plated Busbar
Amperage Rating      :      200 A
Breaker Type      :      BR
Dimensions      :      6 in H x 16 in W x 41 in D
Enclosure Type      :      NEMA 3R
Interrupt Rating      :      25 kA
Material      :      Aluminum
Number of Circuits      :      40
Number of Spaces      :      40
Phase      :      1 ph
Voltage Rating      :      120/240 VAC
Wire Size      :      1 AWG to 300 kcmil
Wiring Configuration      :      3-Wire
  • No feed-thru lugs
  • Larger knockout provides easier installation and time savings
  • Straight-in wiring saves labor and material
  • One panel for either top or bottom applications
  • Easily removable and can be installed in any location on the neutral bar
  • Provides solid and reliable breaker mounting single piece design for stability and durability
  • Minimum 150% neutral capacity
  • Provides easy field conversion for service entrance applications
  • Is easily removable for sub-panel applications
  • Insulated/bondable split neutral
