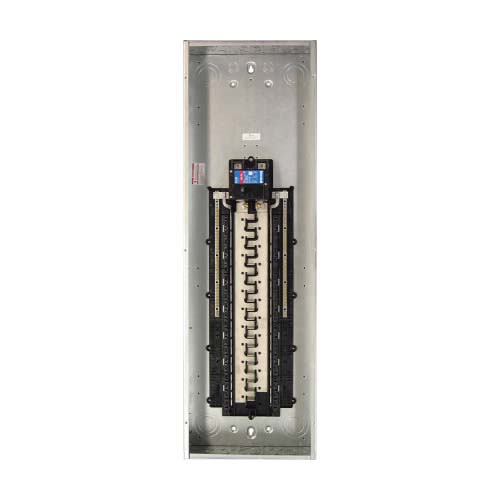

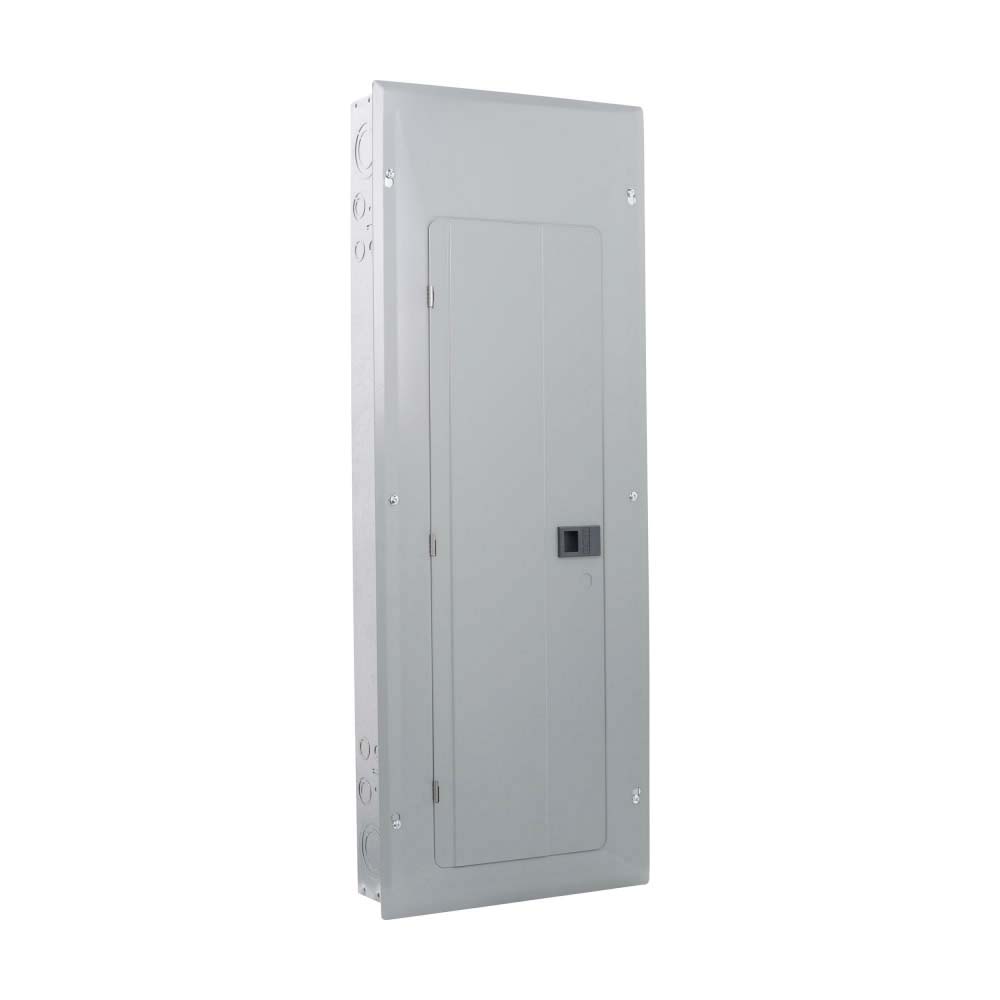

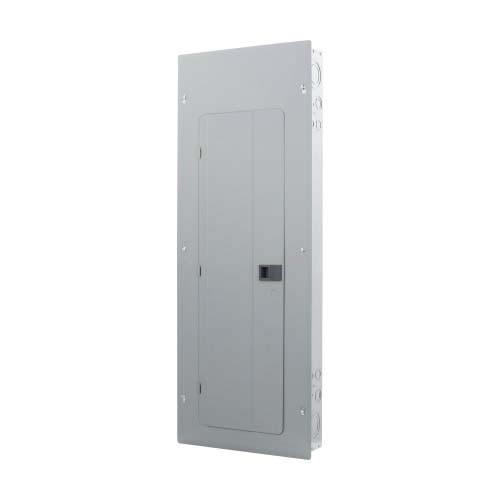

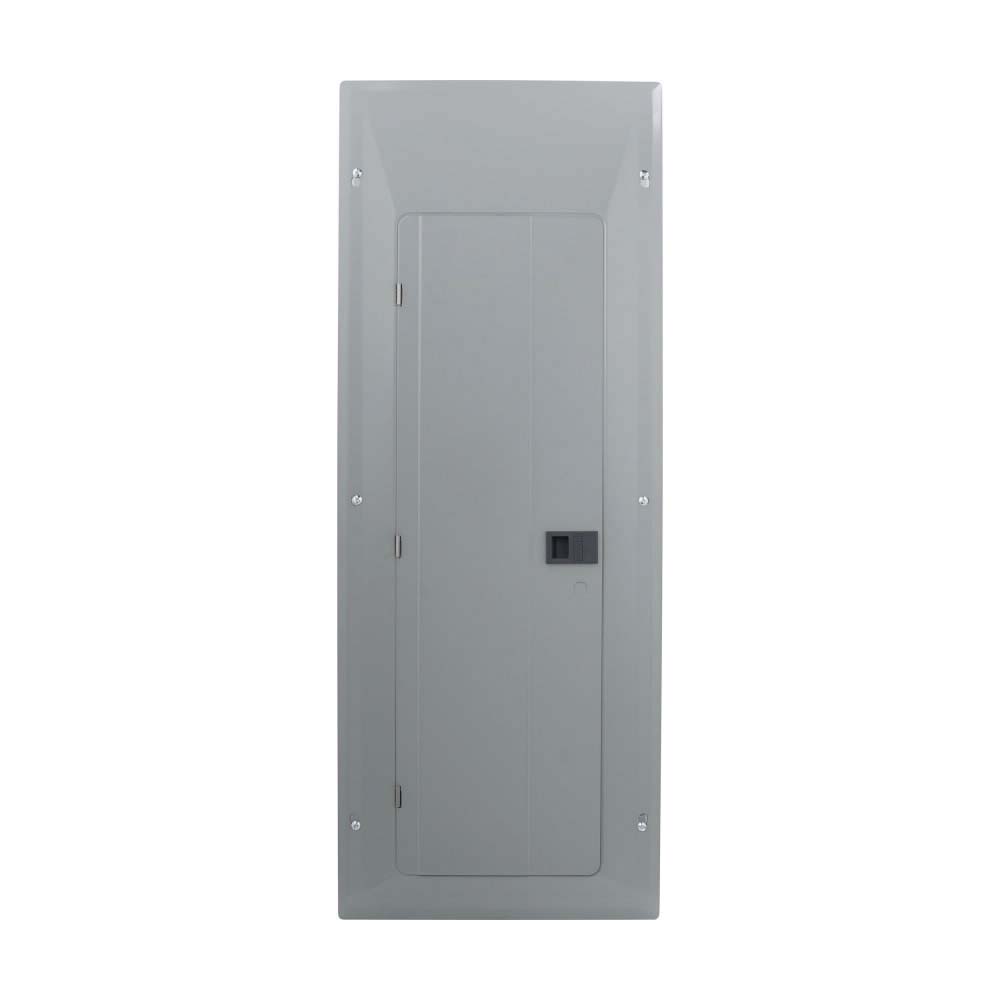

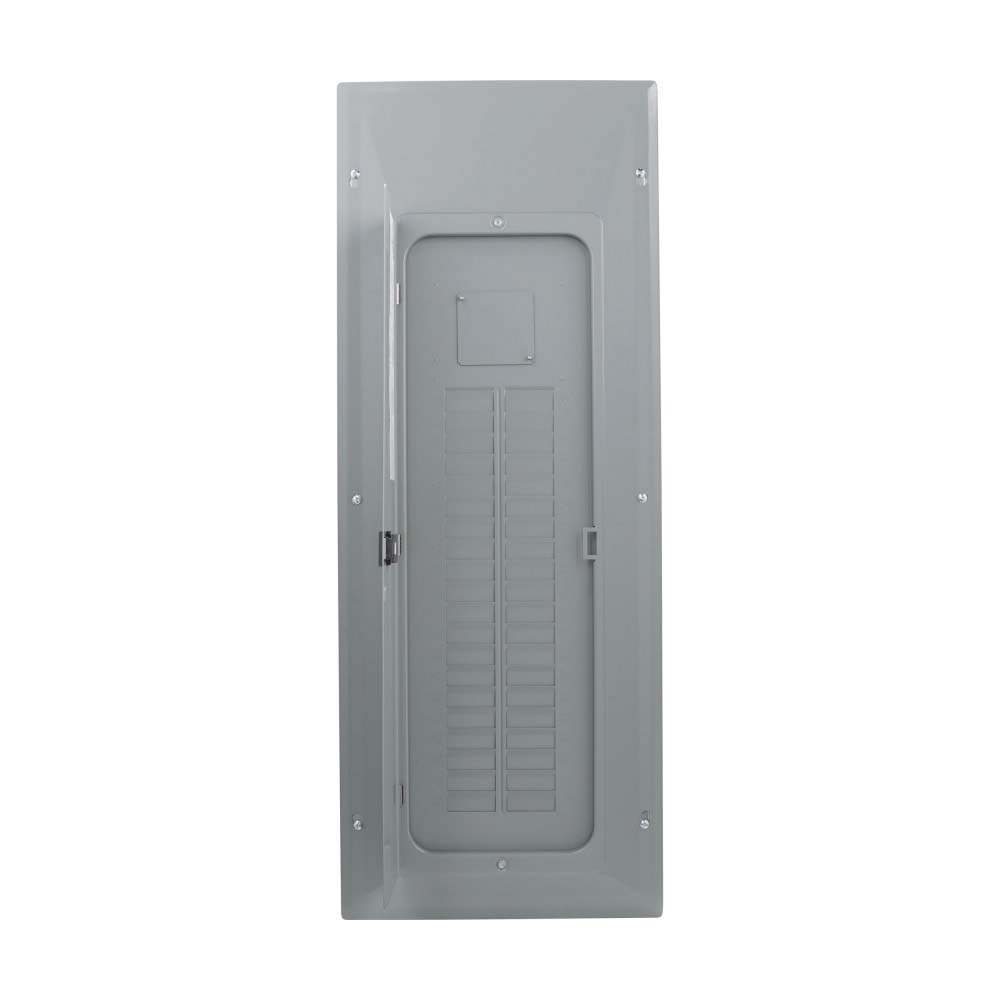

EATON BRP42BC225 Plug-On Neutral Main Circuit Breaker Load Center
EATON BRP42BC225 Plug-On Neutral Main Circuit Breaker Load Center, 120/240 V, 225 A, 1 -Pole, 25 kA Interrupt
EATON BRP42BC225 Plug-On Neutral Main Circuit Breaker Load Center, 120/240 V, 225 A, 1 -Pole, 25 kA Interrupt BRP42BC225- Brand Name: EATON
- Part Number: BRP42BC225
- UPC: 786689055035
- Check Stock
Add To Favorites ListEATON Plug-On Neutral Main Circuit Breaker Load Center, 225 A, 120/240 V, Interrupt Rating: 25 kA, 4-Wire Wiring Configuration, Breaker Type: MB, Number of Poles: 1, 1 ph, Bus Rating: 25 kA, Number of Spaces: 42, Number of Circuits: 84, Metal, Copper Bus, 6 to 1/0 AWG Wire, Combination Mounting, NEMA 1 Enclosure, X8 Enclosure Box, Gray
| Amperage Rating | : | 225 A |
| Breaker Type | : | MB |
| Bus Material | : | Copper |
| Bus Rating | : | 25 kA |
| Color | : | Gray |
| Enclosure Box Size | : | X8 |
| Enclosure Type | : | NEMA 1 |
| Interrupt Rating | : | 25 kA |
| Material | : | Metal |
| Mounting Type | : | Combination |
| Number of Circuits | : | 84 |
| Number of Poles | : | 1 |
| Number of Spaces | : | 42 |
| Phase | : | 1 ph |
| Voltage Rating | : | 120/240 V |
| Wire Size | : | 6 to 1/0 AWG |
| Wiring Configuration | : | 4-Wire |
