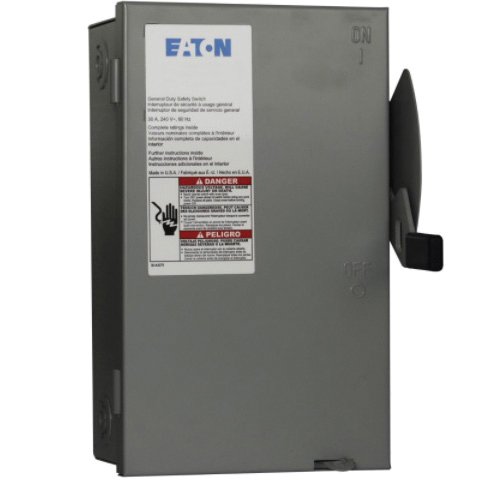

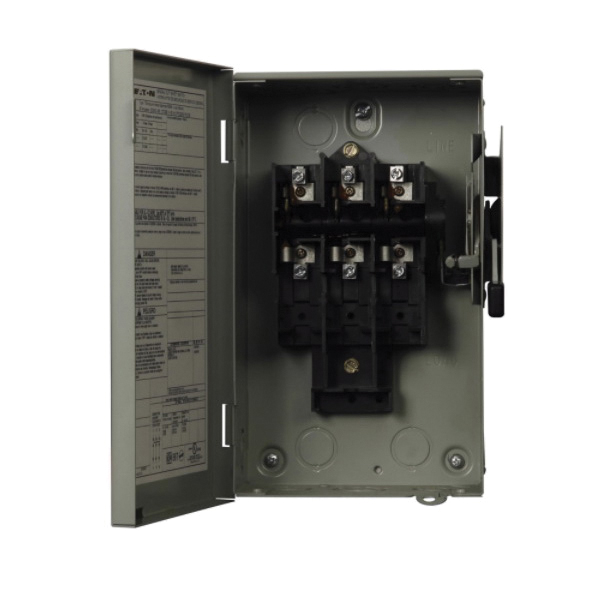

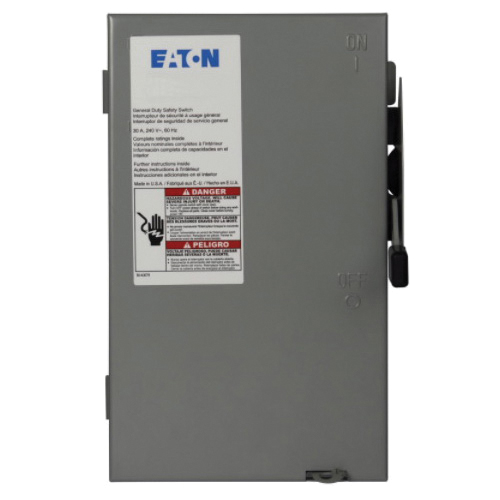

EATON DG321UGB Safety Switch
EATON DG321UGB Safety Switch, 240 V, 30 A, 3-Phase, 3-Pole, 7-1/2 hp, 3-Wire, Indoor Enclosure, Steel
EATON DG321UGB Safety Switch, 240 V, 30 A, 3-Phase, 3-Pole, 7-1/2 hp, 3-Wire, Indoor Enclosure, Steel DG321UGB- Brand Name: EATON
- Part Number: DG321UGB
- UPC: 782113120140
- Check Stock
Add To Favorites ListEATON Safety Switch, 240 V, 30 A, 3 ph, 3 Pole, HP Rating: 7-1/2 hp, 3 Wires, Indoor, Steel, Painted, 6.88 in L x 6.38 in W x 10.69 in H
| Amperage Rating | : | 30 A |
| Dimensions | : | 6.88 in L x 6.38 in W x 10.69 in H |
| Enclosure Type | : | Indoor |
| Finish | : | Painted |
| HP Rating | : | 7-1/2 hp |
| Material | : | Steel |
| Number of Poles | : | 3 |
| Number of Wires | : | 3 |
| Phase | : | 3 ph |
| Voltage Rating | : | 240 V |
- Fusible and non-fusible switches are 100% load break and 100% load make rated
- The continuous load current of fusible switches is not to exceed 80% of the rating of fuses employed in other than motor circuits
- Non-fusible switches are 100% fully rated
- 200 - 600 amp features K-series design
- Horsepower rated
- With Class R fuses, switches may be used on systems capable of delivering 100000 amp rms symmetrical
- 1 year from the date of installation of the product or 18 months from the date of shipment of the product, whichever occurs first
