EATON DG321URB DG321URB

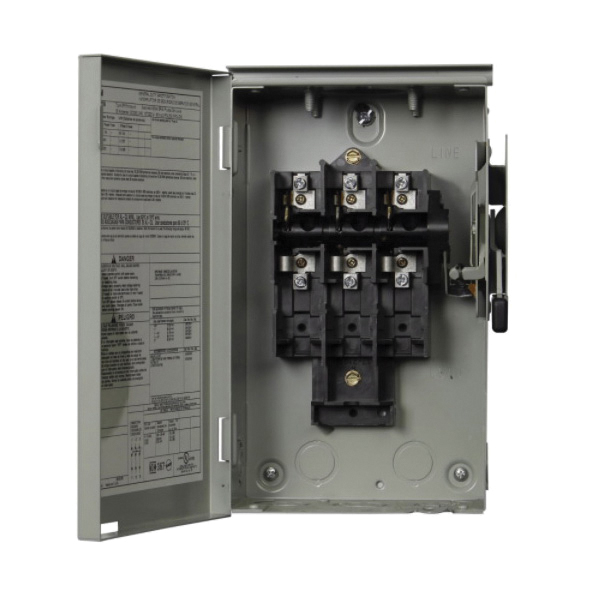

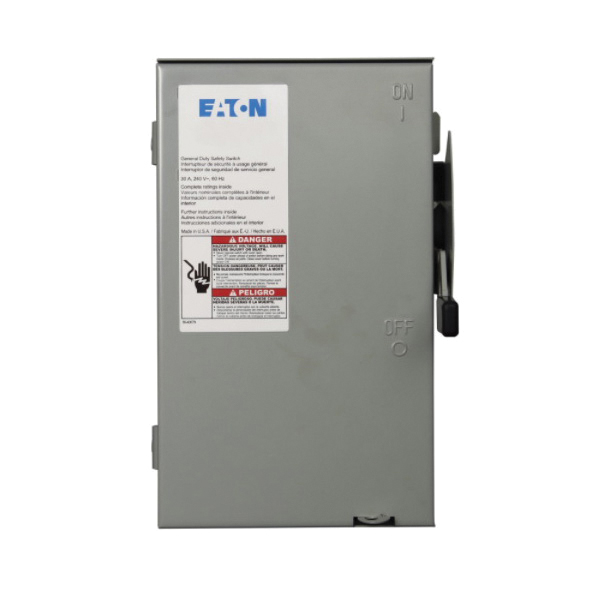

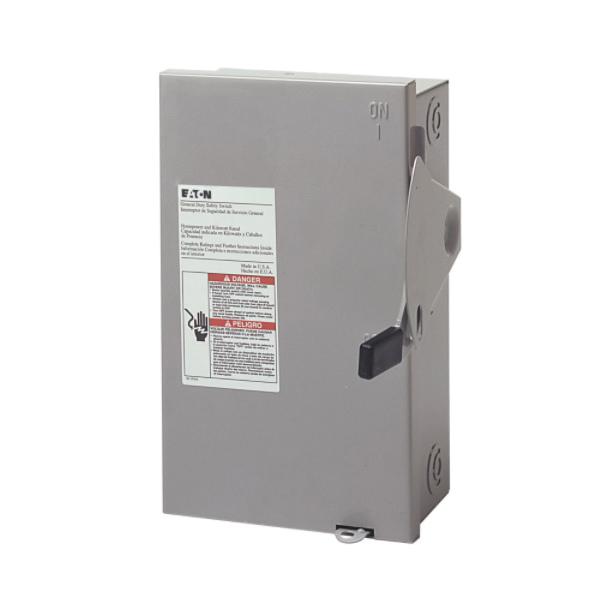

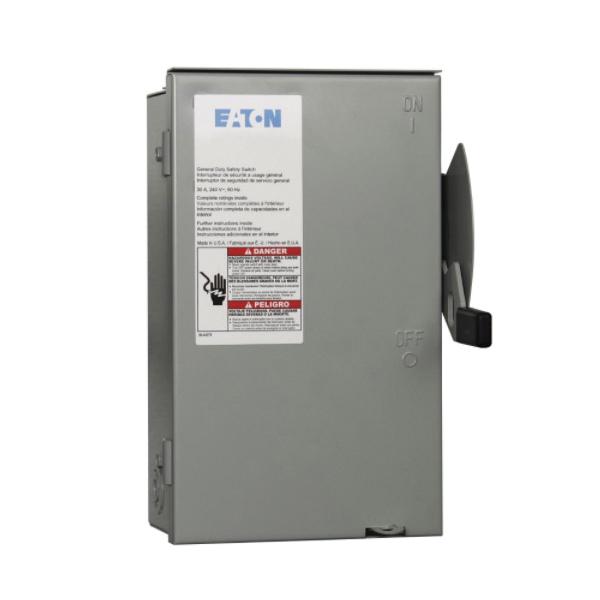

EATON DG321URB Safety Switch

EATON DG321URB Safety Switch, 240 V, 30 A, 3-Phase, 3-Pole, 7-1/2 hp, 3-Wire, Rain-Proof Enclosure, Steel

EATON DG321URB Safety Switch, 240 V, 30 A, 3-Phase, 3-Pole, 7-1/2 hp, 3-Wire, Rain-Proof Enclosure, Steel DG321URB

EATON Safety Switch, 240 V, 30 A, 3 ph, 3 Pole, HP Rating: 7-1/2 hp, 3 Wires, Rain-Proof, Steel, Galvanized/Painted, 6.88 in L x 6.38 in W x 10.81 in H

Amperage Rating      :      30 A
Dimensions      :      6.88 in L x 6.38 in W x 10.81 in H
Enclosure Type      :      Rain-Proof
Finish      :      Galvanized/Painted
HP Rating      :      7-1/2 hp
Material      :      Steel
Number of Poles      :      3
Number of Wires      :      3
Phase      :      3 ph
Voltage Rating      :      240 V
  • Fusible and non-fusible switches are 100% load break and 100% load make rated
  • The continuous load current of fusible switches is not to exceed 80% of the rating of fuses employed in other than motor circuits
  • Non-fusible switches are 100% fully rated
  • 200 - 600 amp features K-series design
  • Horsepower rated
  • With Class R fuses, switches may be used on systems capable of delivering 100000 amp rms symmetrical
  • 1 year from the date of installation of the product or 18 months from the date of shipment of the product, whichever occurs first
