EATON E50AW1 E50AW1

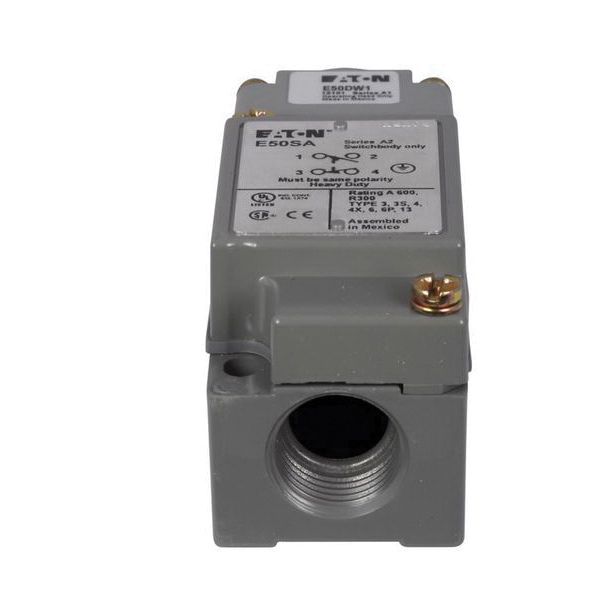

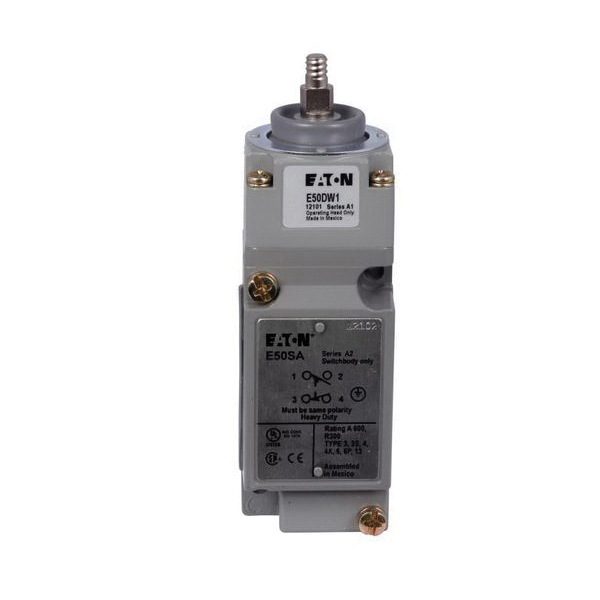

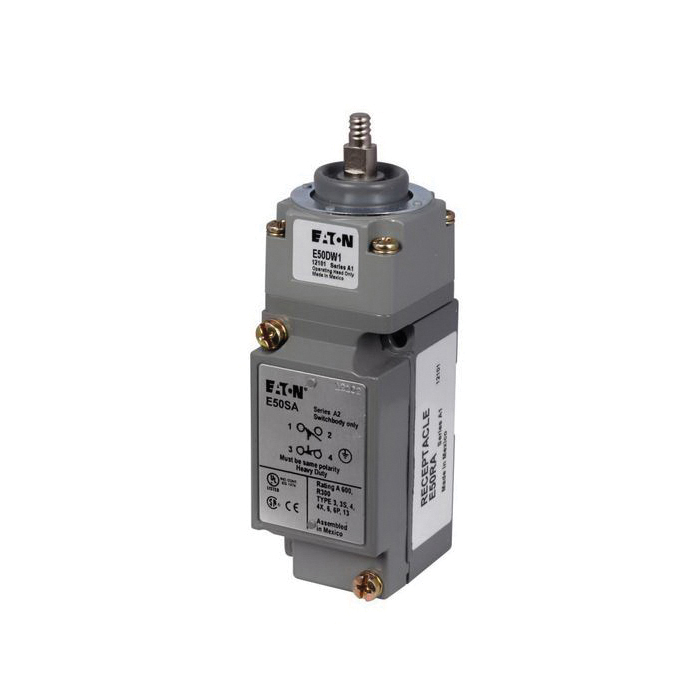

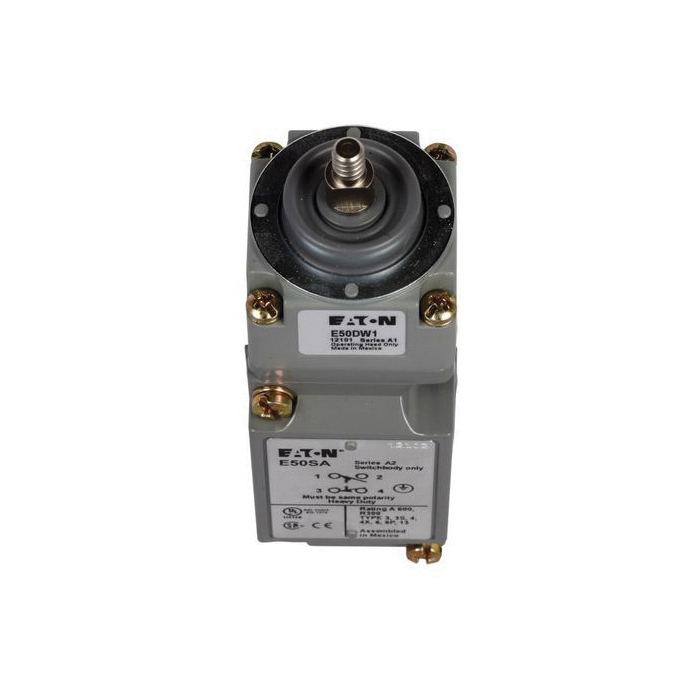

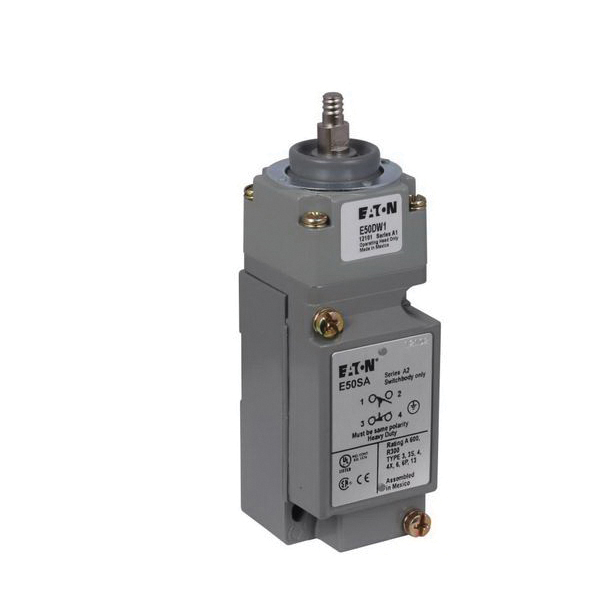

EATON E50AW1 Heavy-Duty Limit Switch

EATON E50 Series E50AW1 Heavy-Duty Limit Switch, 10/1 A, Wobble Head, Spring Return, Screw Termination, Plug-In Mounting

EATON E50 Series E50AW1 Heavy-Duty Limit Switch, 10/1 A, Wobble Head, Spring Return, Screw Termination, Plug-In Mounting E50AW1

EATON Heavy-Duty Limit Switch, Series: E50 Series, 10/1 A, Wobble Head, Spring Return Actuator, Screw Termination Type, 14 to 201 deg F Operating, Plug-In Mounting, Zinc Housing, 4.93 in L x 1.54 in W x 1.78 in H, Die-Cast Method of Manufacture Additional Information

Actuator Type      :      Wobble Head, Spring Return
Additional Information      :      Die-Cast Method of Manufacture
Amperage Rating      :      10/1 A
Dimensions      :      4.93 in L x 1.54 in W x 1.78 in H
Housing Material      :      Zinc
Mounting Type      :      Plug-In
Operating Temperature      :      14 to 201 deg F
Series      :      E50 Series
Termination Type      :      Screw
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/EATON_E50AW1_Specification_Sheet.pdf
