EATON E50DT1 E50DT1

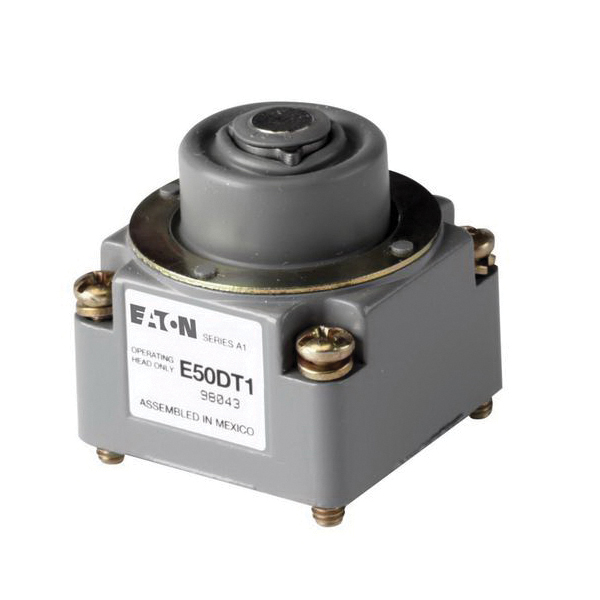

EATON E50DT1 Limit Switch

EATON E50 Series E50DT1 Limit Switch, Top Pushbutton Actuation, IP67, NEMA 1/3/3S/4/4X/6/6P/13 Enclosure, Zinc Body

EATON E50 Series E50DT1 Limit Switch, Top Pushbutton Actuation, IP67, NEMA 1/3/3S/4/4X/6/6P/13 Enclosure, Zinc Body E50DT1

EATON Limit Switch, Series: E50 Series, Top Pushbutton Actuation, IP67, NEMA 1/3/3S/4/4X/6/6P/13 Enclosure, 14 to 201 deg F, Plug-In Mounting, Zinc Body, 1.78 in Height, 1.54 in Width, 1.48 in Depth, Die-Cast Method of Manufacture Additional Information

Actuation Type      :      Top Pushbutton
Additional Information      :      Die-Cast Method of Manufacture
Body Material      :      Zinc
Depth      :      1.48 in
Enclosure Type      :      IP67, NEMA 1/3/3S/4/4X/6/6P/13
Height      :      1.78 in
Mounting Type      :      Plug-In
Series      :      E50 Series
Temperature Rating      :      14 to 201 deg F
Width      :      1.54 in
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/EATON_E50DT1_Specification_Sheet.pdf
