EATON E50ST E50ST

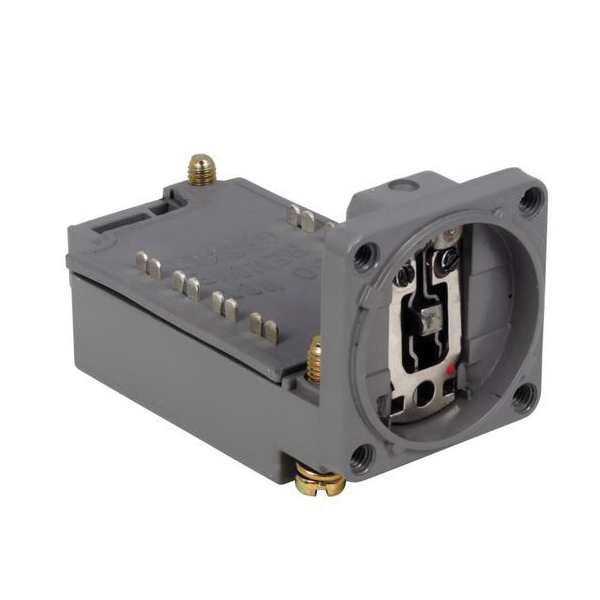

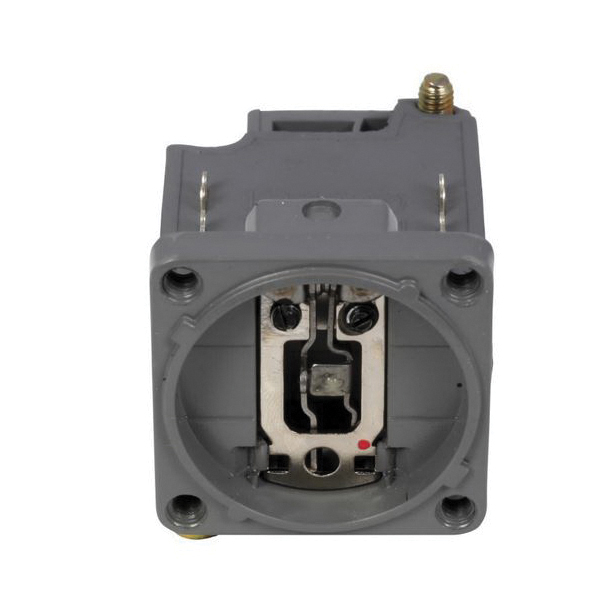

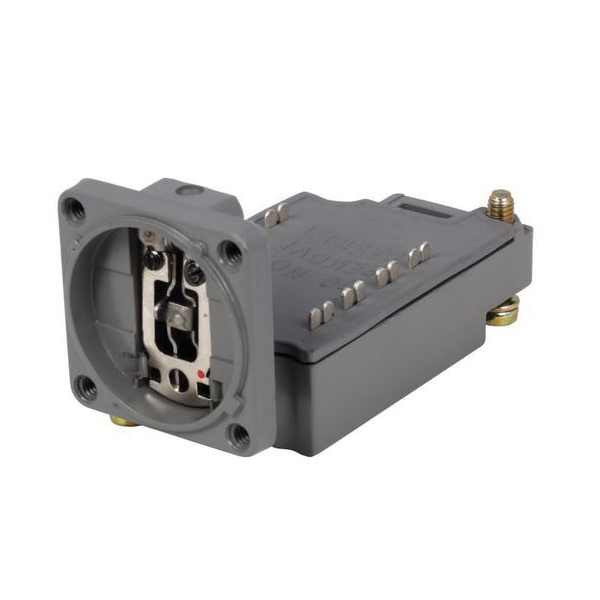

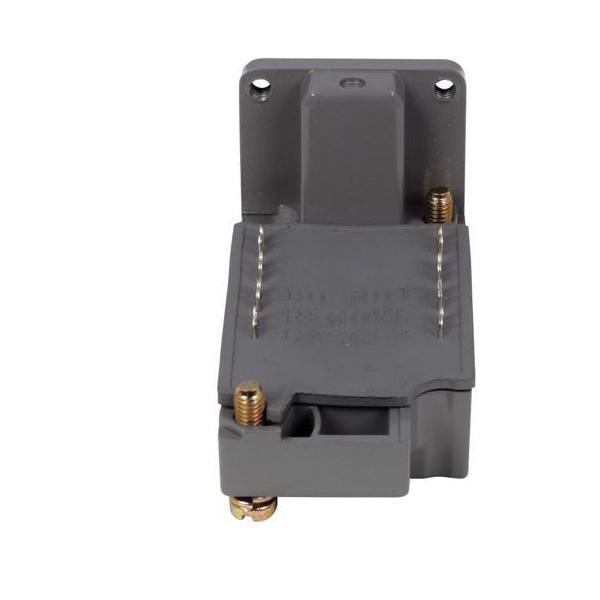

EATON E50ST Limit Switch

EATON E50 Series E50ST Limit Switch, 1/10 A, 1 NO, 1 NC, IP67, NEMA 1/3/3S/4/4X/6/6P/13 Enclosure, Plug-In Mounting

EATON E50 Series E50ST Limit Switch, 1/10 A, 1 NO, 1 NC, IP67, NEMA 1/3/3S/4/4X/6/6P/13 Enclosure, Plug-In Mounting E50ST

EATON Limit Switch, Series: E50 Series, 1/10 A, 1 NO, 1 NC Contact Configuration, 10 A at 240 VAC, 1 A at 125 VDC Contact Rating, IP67, NEMA 1/3/3S/4/4X/6/6P/13 Enclosure, 14 to 201 deg F, Plug-In Mounting, Zinc Body, 3.13 in Height, 1.78 in Width, 1.54 in Depth, Die-Cast Method of Manufacture Additional Information

Additional Information      :      Die-Cast Method of Manufacture
Amperage Rating      :      1/10 A
Body Material      :      Zinc
Contact Configuration      :      1 NO, 1 NC
Contact Rating      :      10 A at 240 VAC, 1 A at 125 VDC
Depth      :      1.54 in
Enclosure Type      :      IP67, NEMA 1/3/3S/4/4X/6/6P/13
Height      :      3.13 in
Mounting Type      :      Plug-In
Series      :      E50 Series
Temperature Rating      :      14 to 201 deg F
Width      :      1.78 in
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/EATON_E50ST_Specification_Sheet.pdf
