EATON ED2200L ED2200L

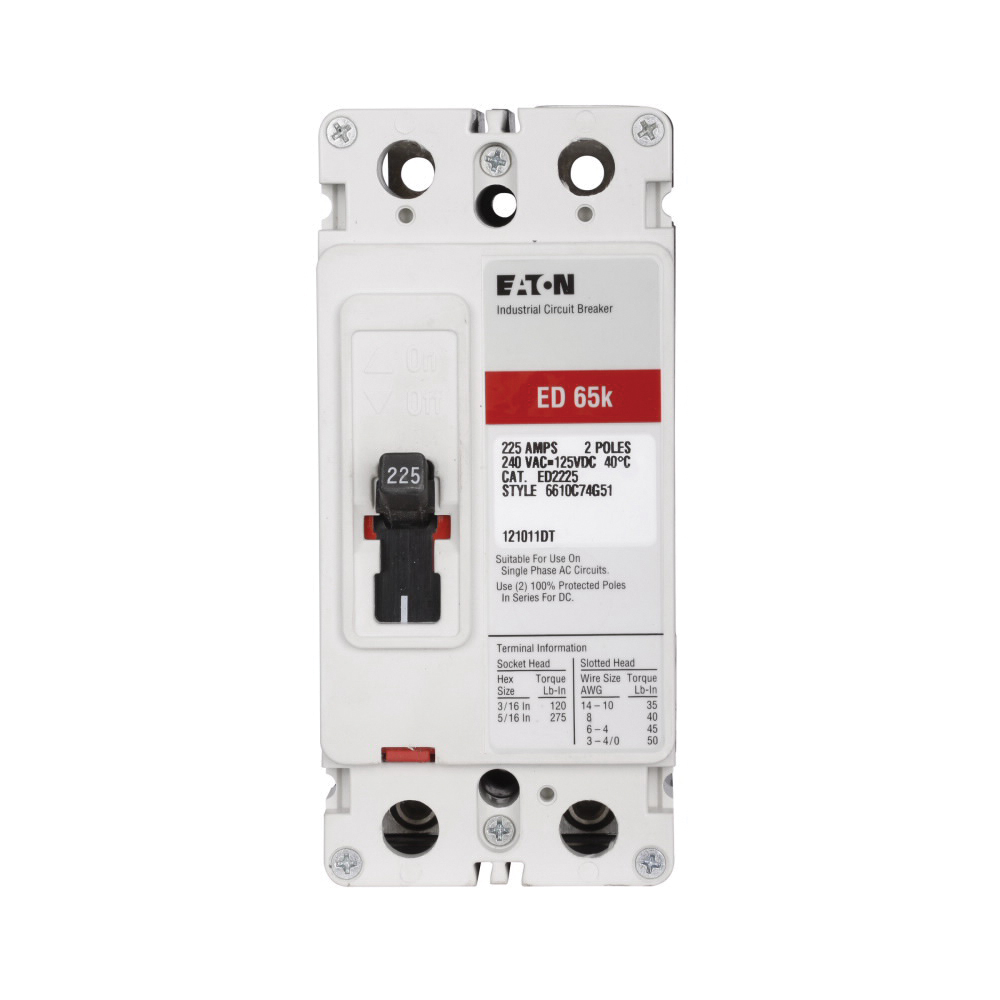

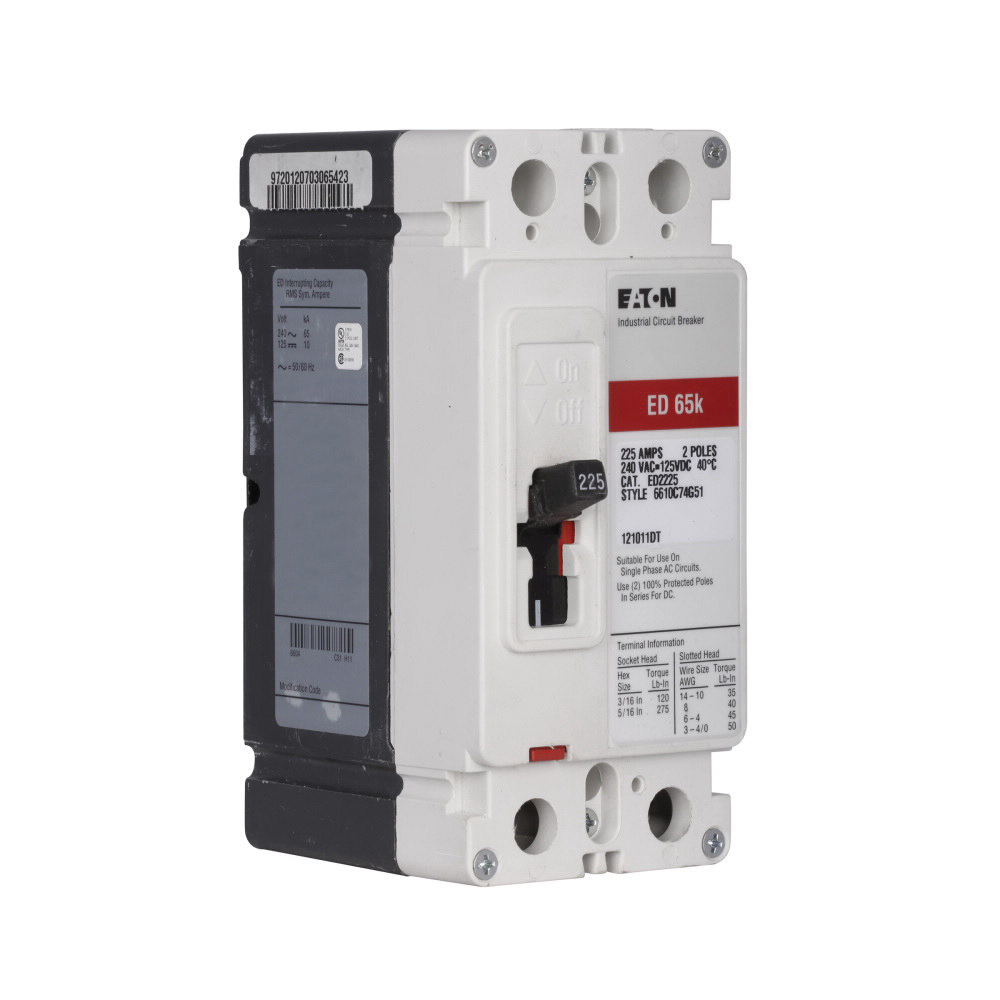

EATON ED2200L Molded Case Circuit Breaker With Terminals

EATON C Series ED2200L Molded Case Circuit Breaker With Terminals, 240 VAC/125 VDC, 200 A, 65 kA Interrupt, 2-Pole

EATON C Series ED2200L Molded Case Circuit Breaker With Terminals, 240 VAC/125 VDC, 200 A, 65 kA Interrupt, 2-Pole ED2200L

EATON Molded Case Circuit Breaker, C Series, 200 A, 240 VAC/125 VDC, 50/60 Hz, 65 kA Interrupt Rating, 2 Poles, F Frame, Fixed Thermal, Magnetic Trip, Panel Mounting, 2-3/4 in Width, 3.38 in Length, 2-3/4 in Height, Gray

Amperage Rating      :      200 A
Color      :      Gray
Frame Type      :      F
Frequency Rating      :      50/60 Hz
Height      :      2-3/4 in
Interrupt Rating      :      65 kA
Length      :      3.38 in
Mounting Type      :      Panel
Number of Poles      :      2
Series      :      C Series
Trip Type      :      Fixed Thermal, Magnetic
Voltage Rating      :      240 VAC/125 VDC
Width      :      2-3/4 in
  • All F-frame circuit breakers are suitable for reverse feed use
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/EATON_ED2200L_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/EATON_ED2200L_Instruction_Installation_Manual.pdf
