Glasfloss® GAP20255 GAP20255

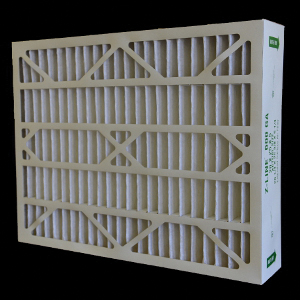

Glasfloss GAP20255 Pleated Air Filter

Glasfloss® Z-Line 600 GA GAP20255 Replacement Pleated Air Filter, Synthetic Fiber Media, 20 in W, 25 in H, 5 in D

Glasfloss® Z-Line 600 GA GAP20255 Replacement Pleated Air Filter, Synthetic Fiber Media, 20 in W, 25 in H, 5 in D GAP20255

Glasfloss Z-Series Air Cleaner Replacement Filters offer convenient alternatives when replacement of the original filter is necessary. The Z-Line 600 GA filter replacement option for Goodman and Amana whole-house high efficiency media air cleaners.
Glasfloss® Replacement Pleated Air Filter, Series: Z-Line 600 GA, Synthetic Fiber Media, Die-Cut Beverage Board Frame, 20 in Width, 25 in Height, 5 in D, MERV: 11, 36.91 sq-ft Media Area, 300 fpm Rated Velocity, 0.14 in-WG Initial Resistance, 1/2 in-WG Final Resistance, 20-1/4 x 25-3/8 x 5-1/4 in Actual, 180 deg F

Actual Size      :      20-1/4 x 25-3/8 x 5-1/4 in
Depth      :      5 in
Final Resistance      :      1/2 in-WG
Frame Material      :      Die-Cut Beverage Board
Height      :      25 in
Initial Resistance      :      0.14 in-WG
MERV      :      11
Media Area      :      36.91 sq-ft
Media Material      :      Synthetic Fiber
Rated Velocity      :      300 fpm
Series      :      Z-Line 600 GA
Temperature Rating      :      180 deg F
Width      :      20 in
  • The 600 GA Series incorporates 100% synthetic fibers that are thermally-bonded, and manufactured in an engineered gradient structure
  • An expanded metal reinforcement shall be laminated to the air-exit side of the media by a thermo-setting adhesive to maintain continuity of the radial pleats
  • The expanded metal shall be galvanized to resist rust and corrosion
  • Moisture-resistant separators are used to ensure pleat integrity during operation
  • The pleated cartridge shall be bonded to the peripheral interior of the outer frame
  • A heavy-duty moisture-resistant beverage board incorporating post-consumer material shall be utilized for an encasing frame
  • The frame face shall be internally laminated to the pleated cartridge aPEXes
  • Each filter is sealed in plastic to avoid contamination before use
  • Made in the U.S.A
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Glasfloss_HWP20254_Specification_Sheet.pdf
