Glasfloss® MAGGH2424A4F2 MAGGH2424A4F2

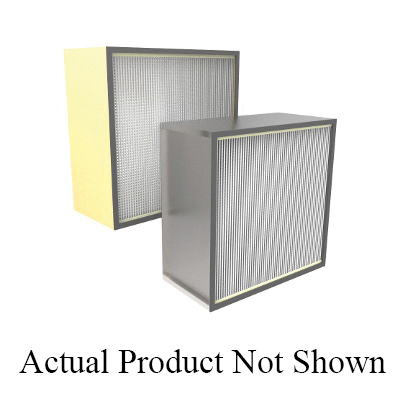

Glasfloss MAGGH2424A4F2 Pleated Air Filter

Glasfloss® MAGNA 950 MAGGH2424A4F2 Pleated Air Filter, Micro Fiberglass Media, 24 in W, 24 in H, 6 in D

Glasfloss® MAGNA 950 MAGGH2424A4F2 Pleated Air Filter, Micro Fiberglass Media, 24 in W, 24 in H, 6 in D MAGGH2424A4F2

The Glasfloss Magna Series HEPA grade air filters are designed for high-efficiency commercial and industrial applications. Glasfloss Magna filters are produced in a wide range of sizes, frame types and header combinations and are ideal for converting or upgrading existing systems. As an option, Glasfloss High-Capacity Magna filter models are also available for higher velocity applications and incorporate more media area for lower resistance.
Glasfloss® Pleated Air Filter, Series: MAGNA 950, Micro Fiberglass Media, Single Header Frame, 24 in Width, 24 in Height, 6 in D, 95 % Filter Efficiency, 175 fpm Rated Velocity, 24 x 24 x 5-7/8 in Actual, 180 deg F

Actual Size      :      24 x 24 x 5-7/8 in
Depth      :      6 in
Filter Efficiency      :      95 %
Frame Material      :      Single Header
Height      :      24 in
Media Material      :      Micro Fiberglass
Rated Velocity      :      175 fpm
Series      :      MAGNA 950
Temperature Rating      :      180 deg F
Width      :      24 in
  • The frame shall be made of a rigid high-density 26 ga galvanized metal
  • The media shall be constructed of a water-resistant, inorganic glass microfiber
  • For quality assurance, the glass microfiber media rolls are randomly tested and certified to meet minimum efficiency requirements by the media manufacturer
  • The media pack shall consist of a continuous sheet of the pleated glass microfiber
  • The pleated media pack is separated with multiple rolled-edge corrugated aluminum separators
  • The media cartridge shall be sealed with a fire retarding, rubber base, two-part sealant that bonds the media and separators to the interior of the particleboard frame filter
  • A 1/4 in THK closed cell neoprene gasket shall be applied on the filter
  • Gasket location air entry
  • Front side face guards
  • Made in the U.S.A
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Glasfloss_MAGGH2424A4F2_Specification_Sheet.pdf
