Glasfloss® PUPH2424B30 PUPH2424B30

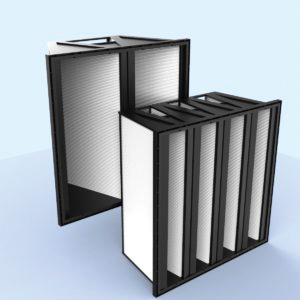

Glasfloss PUPH2424B30 Mini-Pleated Air Filter

Glasfloss® Puracell VP PUPH2424B30 Mini-Pleated Air Filter, Microfiber Media, 24 in W, 24 in H, 12 in D, 14 MERV

Glasfloss® Puracell VP PUPH2424B30 Mini-Pleated Air Filter, Microfiber Media, 24 in W, 24 in H, 12 in D, 14 MERV PUPH2424B30

Glasfloss® Mini-Pleated Air Filter, Series: Puracell VP, Microfiber Media, 24 in Width, 24 in Height, 12 in D, MERV: 14, 90 to 95 % Filter Efficiency, 189 sq-ft Media Area, 500 fpm Rated Velocity, 0.32 in-WG Initial Resistance, 2 in-WG Final Resistance, 23-3/8 x 23-3/8 x 11-1/2 in Actual, 180 deg F

Actual Size      :      23-3/8 x 23-3/8 x 11-1/2 in
Depth      :      12 in
Filter Efficiency      :      90 to 95 %
Final Resistance      :      2 in-WG
Height      :      24 in
Initial Resistance      :      0.32 in-WG
MERV      :      14
Media Area      :      189 sq-ft
Media Material      :      Microfiber
Rated Velocity      :      500 fpm
Series      :      Puracell VP
Temperature Rating      :      180 deg F
Width      :      24 in
  • The media shall be water-resistant, inorganic, wet laid glass microfiber which does not support the growth of bacteria or mold
  • The Puracell VP media packs are constructed by pleating a continuous sheet of media
  • The pleats are separated by a uniform glue bead that produces low pressure drop while maximizing the filtration area
  • The media packs are completely sealed and bonded within the heavy-duty injection molded plastic frame
  • The Puracell VP Series extended surface minipleat filters offer high efficiency particulate removal, extended service life and extremely low-resistance to air flow
  • The Puracell VP filters feature a versatile, plastic channel frame design and rigid galvanized struts for excellent strength and durability in demanding commercial and industrial applications
  • Moisture-resistant construction
  • Low-resistance energy savings
  • No gasket
  • Glasfloss Puracell VP mini-pleat filters deliver high particulate removal efficiency and low pressure drop for extended service life
  • Produced in 12 in D heavy-duty injection molded plastic header frame design
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Glasfloss_PUPH2412B30_Specification_Sheet.pdf
