JANATICS FRC149202-MM IDI_141416

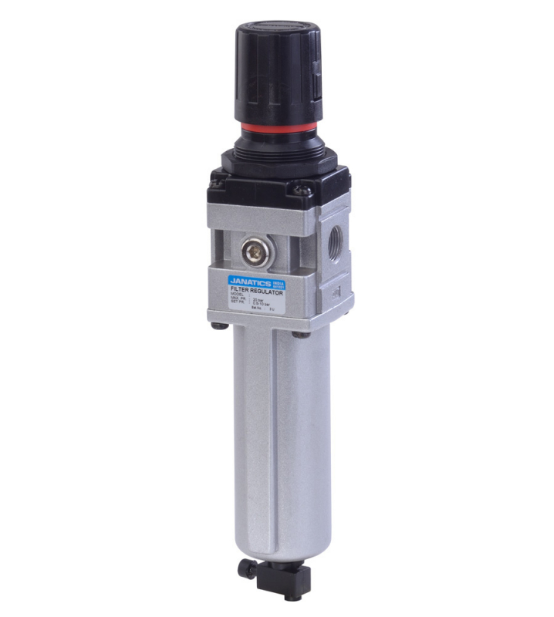

Janatics FRC149202-MM Filter Regulator Combo with Manual Drain, 3/8" NPT (63.57 SCFM)

1 Micron, Metal Bowl, 280 PSI Max (2.9 - 57 PSI)

1 Micron, Metal Bowl, 280 PSI Max (2.9 - 57 PSI) FRC149202-MM

JANATICS Filter and Regulator Combo Unit, Series: FRC1M Series, 1/4 in Connection, G/NPT Connection, 19.25 scfm Flow Rate, 280 psi Maximum Working Pressure, 7 to 140 psi Set Pressure Range, 100 um Micron Rating, Compressed Air Particle, Knob Pressure Adjustment Method, 1/8 in Gauge Graduation, Manual Drain, 41 to 140 deg F, Panel Mounting, Aluminum Bowl, 9 mL Bowl, 6.769 in H x 1.575 in W Dimensions

Bowl Material      :      Aluminum
Bowl Size      :      64 mL
Connection Size      :      3/8 in
Connection Type      :      G/NPT
Dimensions      :      10.43 in H x 2.165 in W
Drain Type      :      Manual
Flow Rate      :      63 scfm
Gauge Graduation      :      1/8 in
Maximum Working Pressure      :      280 psi
Micron Rating      :      1 um
Mounting Type      :      Panel
Particle Type      :      Compressed Air
Pressure Adjustment Method      :      Knob
Series      :      FRC1M Series
Set Pressure Range      :      3 to 60 psi
Temperature Rating      :      41 to 140 deg F
Bronze filtering element
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/JANATICS_FRC139001_MM_Specification_Sheet.pdf
