JANATICS FRC159303 IDI_141201

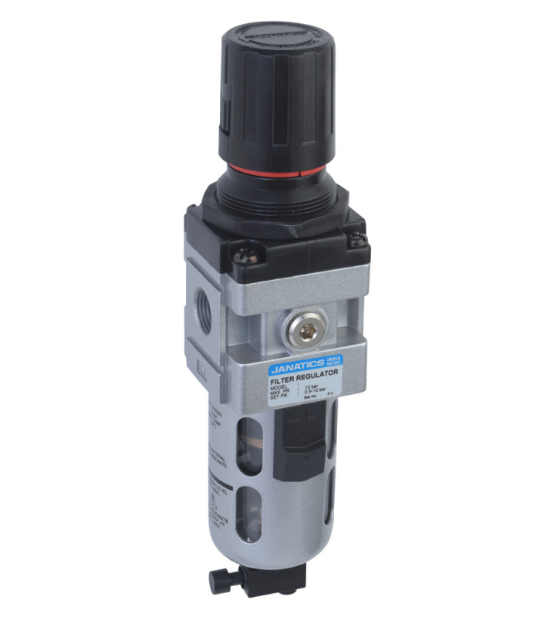

Janatics FRC159303 Filter Regulator Combo with Manual Drain, 1/2" NPT (106 SCFM)

1 Micron, Polycarbonate Bowl with Guard (7.25 - 100 PSI)

1 Micron, Polycarbonate Bowl with Guard (7.25 - 100 PSI) FRC159303

JANATICS Filter and Regulator Combo Unit, Series: FRC1 Series, 1/2 in Connection, G/NPT Connection, 105 scfm Flow Rate, 140 psi Maximum Working Pressure, 3 to 30 psi Set Pressure Range, 1 um Micron Rating, Compressed Air Particle, Knob Pressure Adjustment Method, 1/8 in Gauge Graduation, Manual Drain, 41 to 120 deg F, Panel Mounting, Polycarbonate Bowl, 44 mL Bowl, 11.02 in H Dimensions

Bowl Material      :      Polycarbonate
Bowl Size      :      44 mL
Connection Size      :      1/2 in
Connection Type      :      G/NPT
Dimensions      :      11.02 in H
Drain Type      :      Manual
Flow Rate      :      105 scfm
Gauge Graduation      :      1/8 in
Maximum Working Pressure      :      140 psi
Micron Rating      :      1 um
Mounting Type      :      Panel
Particle Type      :      Compressed Air
Pressure Adjustment Method      :      Knob
Series      :      FRC1 Series
Set Pressure Range      :      7 to 100 psi
Temperature Rating      :      41 to 120 deg F
Bronze filtering element
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/JANATICS_FRC139001_Specification_Sheet.pdf
