JANATICS FRCLM159314 IDI_141902

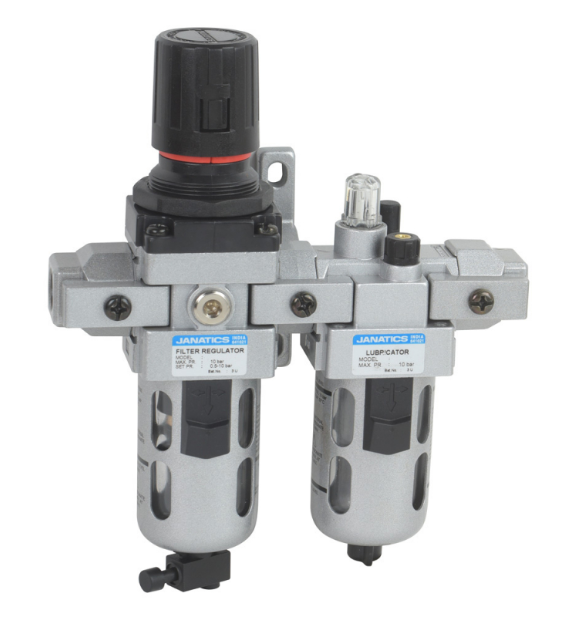

Janatics FRCLM159314 Filter Regulator Combo Lubricator Modular with Manual Drain, 1/2" NPT (98.88 SCFM)

5 Micron, Polycarbonate Bowl with Guard (7.25 - 140 PSI)

5 Micron, Polycarbonate Bowl with Guard (7.25 - 140 PSI) FRCLM159314

JANATICS Filter, Regulator and Lubricator Combo Unit With Steel Bowl Guard, Series: FRCLM1 Series, 1/2 in Connection, NPT Connection, 98.9 scfm Flow Rate, 140 psi Maximum Working Pressure, 3 to 60 psi Set Pressure Range, 5 um Micron Rating, Compressed Air Particle, Knob Pressure Adjustment Method, Fog, Mist Lubricator, 152 mL Lubricator Capacity, 1/8 in Gauge Graduation, Manual Drain, 41 to 120 deg F, Wall Mounting, Polycarbonate Bowl, 44 mL Bowl, 11.02 in H x 6.14 in W Dimensions

Bowl Material      :      Polycarbonate
Bowl Size      :      44 mL
Connection Size      :      1/2 in
Connection Type      :      NPT
Dimensions      :      11.02 in H x 6.14 in W
Drain Type      :      Manual
Flow Rate      :      98.9 scfm
Gauge Graduation      :      1/8 in
Lubricator Capacity      :      152 mL
Lubricator Type      :      Fog, Mist
Maximum Working Pressure      :      140 psi
Micron Rating      :      5 um
Mounting Type      :      Wall
Particle Type      :      Compressed Air
Pressure Adjustment Method      :      Knob
Series      :      FRCLM1 Series
Set Pressure Range      :      7 to 140 psi
Temperature Rating      :      41 to 120 deg F
Modular type for easy and fast maintenance
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/JANATICS_FRCLM139101_Specification_Sheet.pdf
