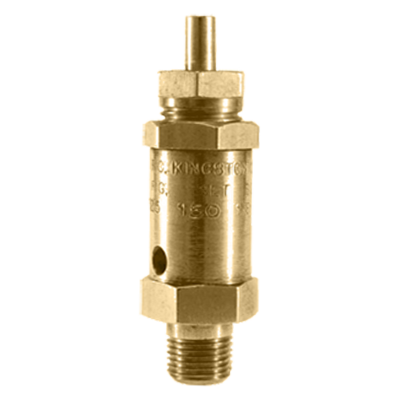

Kingston 125SS-1-100 Pop-Style Safety Valve

KINGSTON 125SS-1-100 Safety Relief Valve, Vent to Atmosphere, 1/8 in Nominal, NPT Connection, 100 psi Pressure Rating

KINGSTON 125SS-1-100 Safety Relief Valve, Vent to Atmosphere, 1/8 in Nominal, NPT Connection, 100 psi Pressure Rating 125SS-1-100

The KINGSTON model 125SS safety valve is precision machined with hard seat. This pop-style safety valve is constructed from brass and features a stainless steel ball on a brass seat. Set pressure range 5 to 300 psi (5 psi increments only). Maximum temperature 400 deg F.
KINGSTON Safety Relief Valve, Model: 125SS, Vent to Atmosphere Style, 1/8 in Nominal, NPT Connection, 100 psi Pressure Rating, Air Media, 0.21 sq-in Orifice, Brass Body, Hard Seat, Brass Seat, Brass Stem, Trim Material: Brass Lock Nut/Stainless Steel Ball, 0 to 400 deg F, 2-5/16 in H Dimensions

Body Material      :      Brass
Connection Type      :      NPT
Dimensions      :      2-5/16 in H
Media      :      Air
Model      :      125SS
Nominal Size      :      1/8 in
Orifice Size      :      0.21 sq-in
Pressure Rating      :      100 psi
Seat Material      :      Brass
Seat Type      :      Hard
Stem Material      :      Brass
Style      :      Vent to Atmosphere
Temperature Rating      :      0 to 400 deg F
Trim Material      :      Brass Lock Nut/Stainless Steel Ball
  • Pop-style safety valve for non-code applications
  • Precision machined hard seat
  • Brass construction, stainless steel ball
  • Small air systems valve
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/KINGSTON_125SS_1_005_Specification_Sheet.pdf
