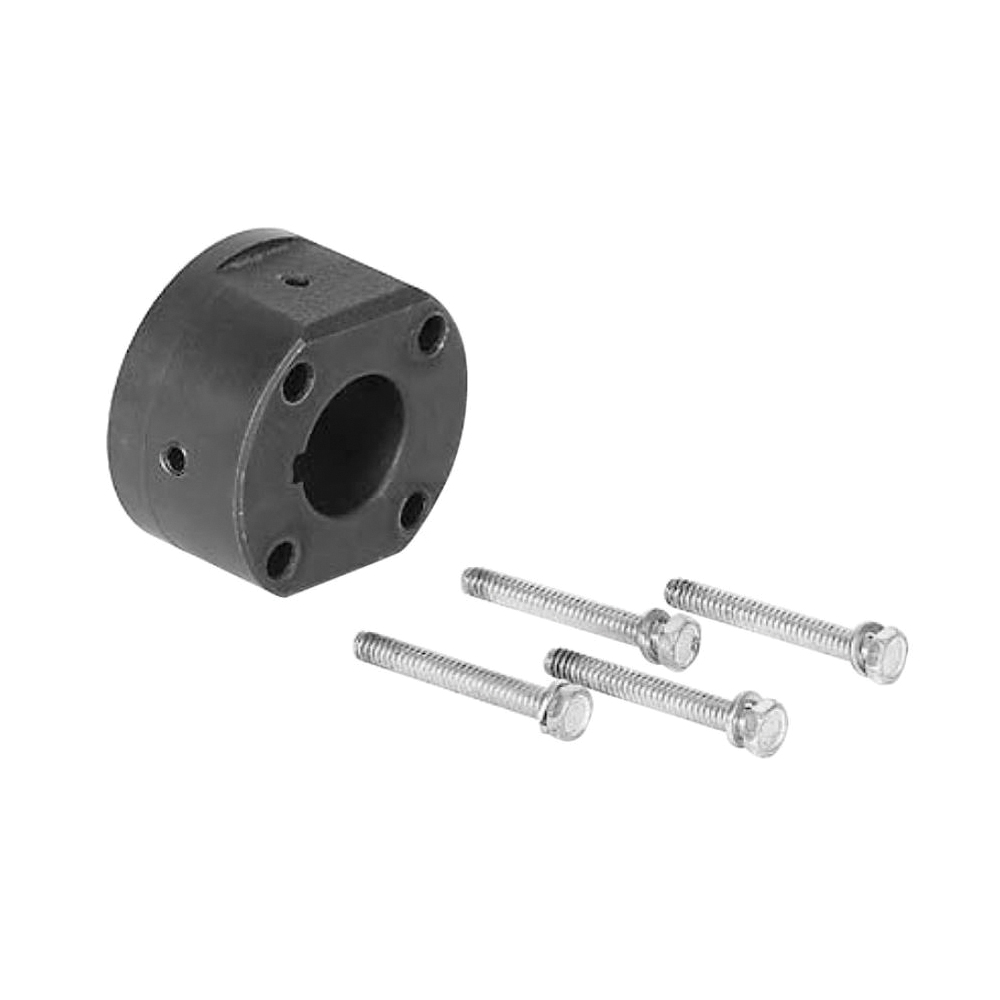

Lovejoy 36616 S Flex Coupling Hub, 7SCH Coupling, 1-1/2 Inch Diameter Bore, 5250 RPM Max Speed, Iron

Lovejoy® S Flex Coupling Hub, 7SCH Coupling Size, 1-1/2 in Bore Diameter, 3/8 x 3/16 in Keyway, Maximum Speed: 5250 rpm, 1/4 x 1-7/8 in Screw, Iron, Additional Information: 2.81 in OD x 1.47 in L, Gray Color, 725 in-lb Torque Rating

• Specifically designed for the pump industry, this coupling accommodates industry standard as well as special pump/motor separation
• This shaft separation facilitates easy pump repair of pump packing, bearings and seals without disturbing pump or motor mounting and alignment
• The SC-type coupling consists of two flanges, a sleeve and two shaft hubs
• The center drop out section consists of two flanges and the flexible sleeve
• The flange is bolted to the shaft hub with four hex head cap screws
• The center drop out section can be removed by removing the hex head cap screws
• Flats on each hub provides a convenient grip for a wrench in order to facilitate loosening of the screws and, if desired, turning of the pump/motor shafts
• Once the hub is removed from the pump shaft, maintenance on the pump can be done without disturbing equipment alignment

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Lovejoy_36097_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Lovejoy_36616_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Lovejoy_36616_Specification_Sheet.pdf
• Video Link https://www.youtube.com/watch?v=oUiYpCeoRIc
