Lovejoy® 68514411518 68514411518

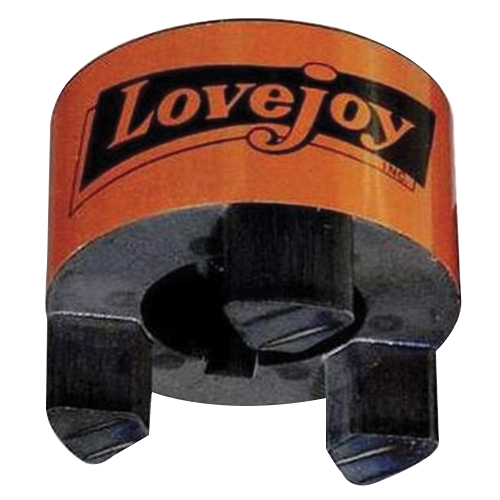

Lovejoy 68514411518 Coupling, 1-1/8 Inch Bore, 2.54 Inch OD, 1.38 Inch Length Through Bore, Sintered Iron

Lovejoy® 68514411518 Coupling, 1-1/8 in Bore, 2.54 in OD, 1.38 in L Through Bore, Sintered Iron

Lovejoy® 68514411518 Coupling, 1-1/8 in Bore, 2.54 in OD, 1.38 in L Through Bore, Sintered Iron 68514411518

Lovejoy® Coupling, 1-1/8 in Bore, 2.54 in OD, 2.09 in L Hub, 1.38 in Length Through Bore, 1/4 x 1/8 in Keyway, L100 Coupling, 7000 rpm, 417 in-lb Torque, Sintered Iron, -40 to 212 deg F, 3.48 in OAL, Metallic

Bore Size      :      1-1/8 in
Color      :      Metallic
Coupling Size      :      L100
Dimensions      :      3.48 in OAL
Hub Size      :      2.09 in L
Keyway Size      :      1/4 x 1/8 in
Length Through Bore      :      1.38 in
Material      :      Sintered Iron
Outside Diameter      :      2.54 in
Speed Rating      :      7000 rpm
Temperature Rating      :      -40 to 212 deg F
Torque Rating      :      417 in-lb
  • Standard L type coupling hub materials are either sintered iron
  • The L type coupling consists of 2 standard L type hubs and 1 spider
  • Unless stated otherwise, hub torque and horsepower ratings assume a SOX(NBR) rubber spider is being used
  • Fail safe will still perform if elastomer fails
  • No metal to metal contact
  • Resistant to oil, dirt, sand, moisture and grease
  • More than 850000 combinations of bore sizes
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Lovejoy_68514410214_Catalog.pdf
