Lovejoy® 68514436057 68514436057

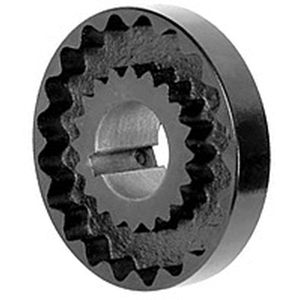

Lovejoy 68514436057 Sleeve Coupling Flange, 1/2 Inch Bore, 3-1/4 Inch OD, 1.06 Inch Length Through Bore, Cast Iron

Lovejoy® 68514436057 Sleeve Coupling Flange, 1/2 in Bore, 3-1/4 in OD, 1.06 in L Through Bore, Cast Iron

Lovejoy® 68514436057 Sleeve Coupling Flange, 1/2 in Bore, 3-1/4 in OD, 1.06 in L Through Bore, Cast Iron 68514436057

Lovejoy® Sleeve Coupling Flange, 1/2 in Bore, 3-1/4 in OD, 1.06 in Length Through Bore, 1/8 x 1/16 in Keyway, 1/4-20 Thread, Finished Bore, 5J Coupling, S-Flex Coupling, 7600 rpm, 240 in-lb Torque, Cast Iron, 2.88 in OAL, Gray

Bore Size      :      1/2 in
Bore Type      :      Finished Bore
Color      :      Gray
Coupling Size      :      5J
Coupling Type      :      S-Flex
Dimensions      :      2.88 in OAL
Keyway Size      :      1/8 x 1/16 in
Length Through Bore      :      1.06 in
Material      :      Cast Iron
Outside Diameter      :      3-1/4 in
Speed Rating      :      7600 rpm
Thread Size      :      1/4-20
Torque Rating      :      240 in-lb
  • J flanges are compatible with EPDM or neoprene sleeves
  • Each flange has a keyway and 2-set screws (1-set screw over the key and (1) at 90 deg to the keyway)
  • The J type coupling consists of 2-flanges and one sleeve
