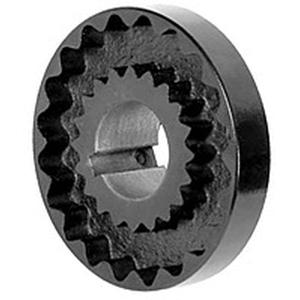

Lovejoy 68514436082 Sleeve Coupling Flange, 1 Inch Bore, 4 Inch OD, 1.31 Inch Length Through Bore, Cast Iron

Lovejoy® 68514436082 Sleeve Coupling Flange, 1 in Bore, 4 in OD, 1.31 in L Through Bore, Cast Iron

Lovejoy® 68514436082 Sleeve Coupling Flange, 1 in Bore, 4 in OD, 1.31 in L Through Bore, Cast Iron 68514436082

Lovejoy® Sleeve Coupling Flange, 1 in Bore, 4 in OD, 1.31 in Length Through Bore, 1/4 x 1/8 in Keyway, 5/16-18 Thread, Finished Bore, 6J Coupling, S-Flex Coupling, 6000 rpm, 450 in-lb Torque, Cast Iron, 3-1/2 in OAL, Gray

Bore Size      :      1 in
Bore Type      :      Finished Bore
Color      :      Gray
Coupling Size      :      6J
Coupling Type      :      S-Flex
Dimensions      :      3-1/2 in OAL
Keyway Size      :      1/4 x 1/8 in
Length Through Bore      :      1.31 in
Material      :      Cast Iron
Outside Diameter      :      4 in
Speed Rating      :      6000 rpm
Thread Size      :      5/16-18
Torque Rating      :      450 in-lb
  • J flanges are compatible with EPDM or neoprene sleeves
  • Each flange has a keyway and 2-set screws (1-set screw over the key and (1) at 90 deg to the keyway)
  • The J type coupling consists of 2-flanges and one sleeve
