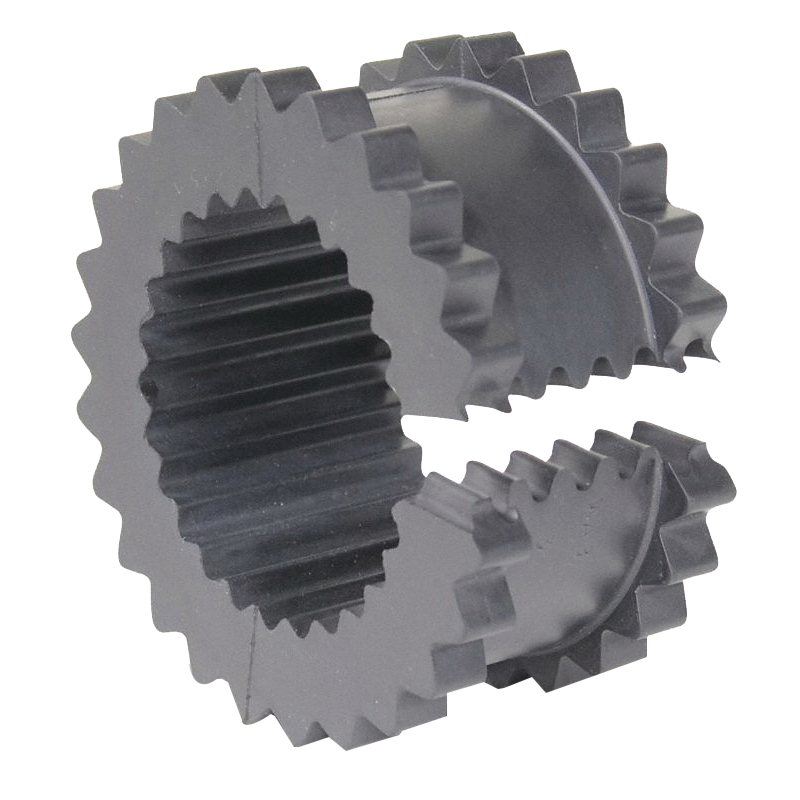

Lovejoy 68514436707 Elastomer Sleeve, EPDM

Lovejoy® Elastomer Sleeve, 1135 in-lb Torque, Maximum Speed: 4500 rpm, EPDM, Additional Information: 0.75 to 1.938 in Bore Size, Black Color, -30 to 275 deg F Temperature Rating

• EPDM has good resistance to commonly used chemicals and is generally not affected by dirt or moisture
• The one-piece split design provides solutions for applications with unique requirements where small shaft separations inhibit the installation of a one-piece solid sleeve
• Pre-molded teeth along the diameter of the sleeve engage with teeth of the coupling flanges
• Torque is transmitted through shear loading of the sleeve
• Sleeve materials are highly elastic which permits the s-flex coupling to protect connected equipment from harmful shock loading, vibration and shaft misalignment
• No clamps or screws are needed to connect the flanges with the flexible sleeve which securely lock together under torque for smooth transmission of power

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Lovejoy_68514436140_Instruction_Installation_Manual.pdf
• Video Link http://www.couplings.com/dH6J/lovejoy-s-flex-standard-type-coupling-installation-video/
