Lovejoy® 6JE 6JE

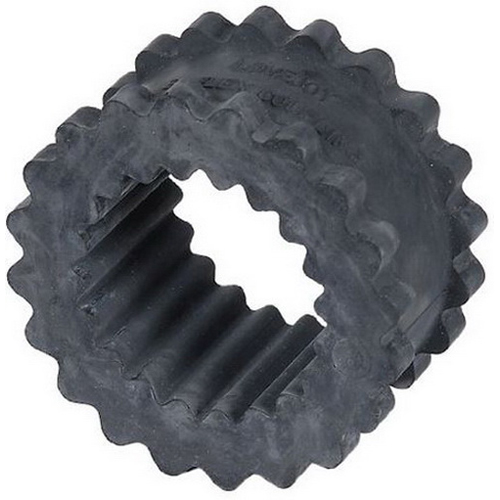

Lovejoy 6JE S-Flex Coupling Sleeve, 6JE Coupling, 3-3/4 Inch OD, 1.88 Inch Length, EPDM, Black

Lovejoy® 6JE S-Flex Coupling Sleeve, 6JE Coupling, 3-3/4 in OD, 1.88 in L, EPDM, Black

Lovejoy® 6JE S-Flex Coupling Sleeve, 6JE Coupling, 3-3/4 in OD, 1.88 in L, EPDM, Black 6JE

Lovejoy® S-Flex Coupling Sleeve, 6JE Coupling, 3-3/4 in Outside Diameter, 1.88 in Length, 585 in-lb Torque, Maximum Speed: 6000 rpm, EPDM, Finish: Black, Additional Information: 0.625 to 1.438 in Bore Size, Black Color, -30 to 275 deg F Temperature Rating

Additional Information      :      0.625 to 1.438 in Bore Size, Black Color, -30 to 275 deg F Temperature Rating
Coupling Size      :      6JE
Finish      :      Black
Length      :      1.88 in
Material      :      EPDM
Maximum Speed      :      6000 rpm
Outside Diameter      :      3-3/4 in
Torque Rating      :      585 in-lb
  • Lovejoy® offers flexible sleeves for S-flex endurance couplings in three-designs - one-piece solid, one-piece split and two-piece with retaining ring
  • The one-piece split design provides solutions for applications with unique requirements where small shaft separations inhibit the installation of a one-piece solid sleeve
  • Pre-molded teeth along the diameter of the sleeve engage with teeth of the coupling flanges
  • No clamps or screws are needed to connect the flanges with the flexible sleeve which securely lock together under torque for smooth transmission of power
  • Torque is transmitted through shear loading of the sleeve
  • All three-sleeve materials are highly elastic which permits the S-flex coupling to protect connected equipment from harmful shock loading, vibration and shaft misalignment
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Lovejoy_36701_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Lovejoy_35454_Instruction_Installation_Manual.pdf
  • videoVideo Link https://www.youtube.com/watch?v=SIfX0X6fEpk
