Lovejoy® 7JE 7JE

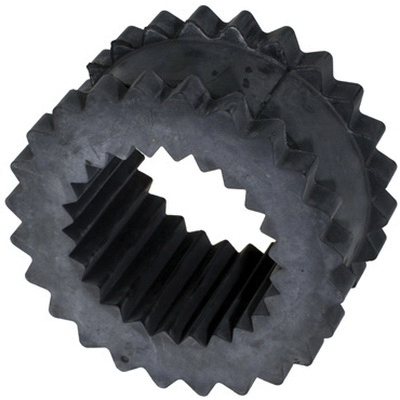

Lovejoy 7JE Elastomer Coupling Sleeve, 4.34 Inch OD, 2.19 Inch Length, EPDM

Lovejoy® 7JE Elastomer Coupling Sleeve, 4.34 in OD, 2.19 in L, EPDM

Lovejoy® 7JE Elastomer Coupling Sleeve, 4.34 in OD, 2.19 in L, EPDM 7JE

Lovejoy® Elastomer Coupling Sleeve, 4.34 in Outside Diameter, 2.19 in Length, 725 in-lb Torque, Maximum Speed: 5250 rpm, EPDM, Additional Information: 5/8 to 1-5/8 in Bore Size, Black Color, -30 to 375 deg F Temperature Rating

Additional Information      :      5/8 to 1-5/8 in Bore Size, Black Color, -30 to 375 deg F Temperature Rating
Length      :      2.19 in
Material      :      EPDM
Maximum Speed      :      5250 rpm
Outside Diameter      :      4.34 in
Torque Rating      :      725 in-lb
  • Lovejoy offers flexible sleeve for S-Flex coupling in three-designs: one-piece solid, one-piece split and two-piece with retaining ring
  • The one-piece split design provides solutions for applications with unique requirements where small shaft separations inhibit the installation of a one-piece solid sleeve
  • Pre-molded teeth along the diameter of the sleeve engage with teeth of the coupling flanges
  • Torque is transmitted through shear loading of the sleeve
  • All three-sleeve materials are highly elastic which permits the S-Flex coupling to protect connected equipment from harmful shock loading, vibration and shaft misalignment
  • These sleeves feature a one-piece design molded in EPDM and neoprene rubber
  • 1 deg angular misalignment
  • 0.062 in maximum parallel misalignment
  • 15 deg maximum tensional wind-up angle
  • 1/8 in axial misalignment
  • EPDM has good resistance to commonly used chemicals and is generally not affected by dirt or moisture
  • No clamps or screws are needed to connect the flanges with the flexible sleeve which securely lock together under torque for smooth transmission of power
