Lovejoy® 68514462069 68514462069

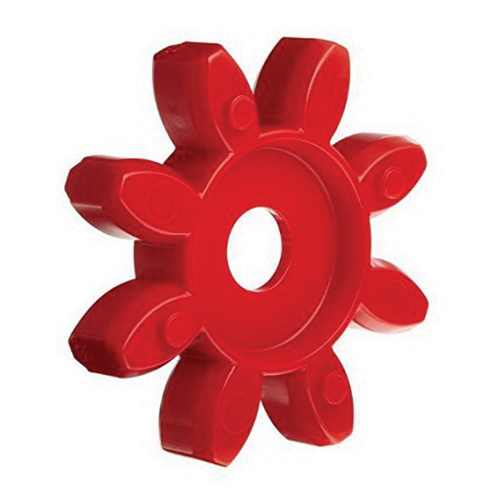

Lovejoy CJ 68514462069 Spider Coupling, 2.16 Inch OD, Polyurethane

Lovejoy® CJ 68514462069 Spider Coupling, 2.16 in OD, Polyurethane

Lovejoy® CJ 68514462069 Spider Coupling, 2.16 in OD, Polyurethane 68514462069

Lovejoy® Spider Coupling, Series: CJ, 2.16 in OD, Elastomeric Insert Coupling, 98 Shore A Spider, 0.55 in THK Spider, 10600 rpm, 0.04 in Angular Displacement, 530 in-lb Torque, Polyurethane, -40 to 212 deg F, Red

Angular Displacement      :      0.04 in
Color      :      Red
Coupling Type      :      Elastomeric Insert
Material      :      Polyurethane
Outside Diameter      :      2.16 in
Series      :      CJ
Speed Rating      :      10600 rpm
Spider Size      :      0.55 in THK
Spider Type      :      98 Shore A
Temperature Rating      :      -40 to 212 deg F
Torque Rating      :      530 in-lb
  • The curved jaw coupling consists of 2 standard hubs and 1 elastomeric spider
  • Three piece design that is easy to assemble The curved jaw design incorporates both radial and axial curvature (crowning) to the elastomer (spider)
  • The curved jaw design incorporates both radial and axial curvature (crowning) to the elastomer (spider)
  • Hubs are offered in sintered iron, steel, aluminum, cast iron and nodular iron materials
  • No metal to metal contact and no lubrication required
  • Fail safe design due to the jaw in compression design (continues to function after the elastomer fails)
  • The CJ Series covers a torque range of 67 to 247800 in-lb
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Lovejoy_68514462069_Catalog.pdf
