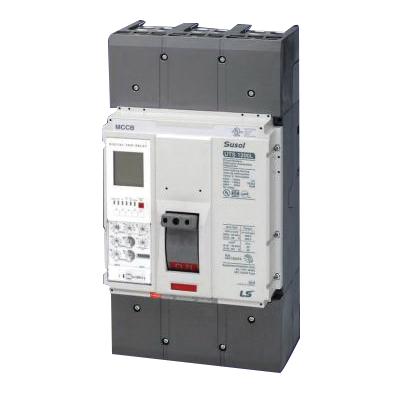

LS Electric 02140323UL Molded Case Circuit Breaker

LS Susol Series 02140323UL Molded Case Circuit Breaker, 600 VAC, 1000 A, 25 kA, 65 kA, 100 kA Interrupt, 3 -Pole

LS Susol Series 02140323UL Molded Case Circuit Breaker, 600 VAC, 1000 A, 25 kA, 65 kA, 100 kA Interrupt, 3 -Pole 02140323UL

The new Susol Series with thermal-magnetic circuit breakers are designed to protect low voltage electrical systems from damage caused by overloads and short circuits.
LS Electric Molded Case Circuit Breaker, Series: Susol Series, 1000 A, 600 VAC, 50/60 Hz, 25 kA, 65 kA, 100 kA Interrupt Rating, 3 Poles, Lug Connection, UTS1200 Frame, Normal, L/S/I/G Self-Powered Trip, 800 to 1200 A Trip Range, Lugs Line, Load Side Terminal, Backplate Mounting, -20 to 70 deg C, 8.27 in Width, 16.26 in Height, 6 in D, 8 kVAC Impulse Withstand Voltage, Communication(X) OCR-II (Remote Reset), Fixed Mounting Mode

Additional Information      :      6 in D, 8 kVAC Impulse Withstand Voltage, Communication(X) OCR-II (Remote Reset), Fixed Mounting Mode
Amperage Rating      :      1000 A
Connection Type      :      Lug
Frame Type      :      UTS1200
Frequency Rating      :      50/60 Hz
Height      :      16.26 in
Interrupt Rating      :      25 kA, 65 kA, 100 kA
Mounting Type      :      Backplate
Number of Poles      :      3
Series      :      Susol Series
Temperature Rating      :      -20 to 70 deg C
Terminal Type      :      Lugs Line, Load Side
Trip Range      :      800 to 1200 A
Trip Type      :      Normal, L/S/I/G Self-Powered
Voltage Rating      :      600 VAC
Width      :      8.27 in
  • High breaking capacity
  • Optimum coordination technique
  • Powerful engineering tools
  • Reverse feeding
  • Optimal overload protection
  • Guaranteed short circuit current ratings
  • Wide range of optimized auxiliaries and accessories
  • For controlling and disconnecting circuits
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/LS_02140323UL_Specification_Sheet.pdf
