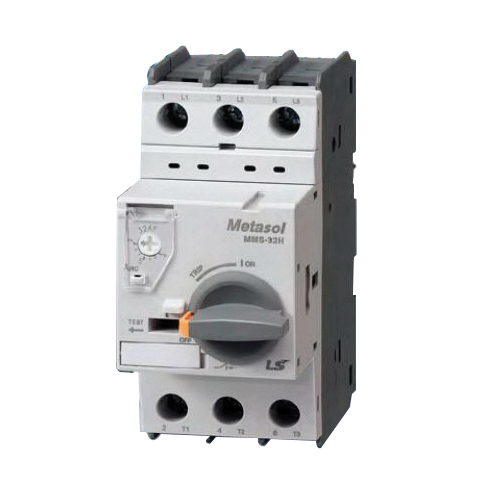

LS Electric 0705106700 Manual Motor Starter
LS Metasol Series 0705106700 Manual Motor Starter, 690 V, Screw Terminal, DIN Rail, Screw Mounting
LS Metasol Series 0705106700 Manual Motor Starter, 690 V, Screw Terminal, DIN Rail, Screw Mounting 0705106700- Brand Name: LS
- Part Number: 0705106700
- Check Stock
-
$75.00
Add To Favorites ListLS manual motor starters (MMS) is a motor protection product with high performance and reliability. This product has higher technology and expertise than the existing Meta-MEC MMS due to existing overload and phase failure protection functions, upgraded short circuit capabilities and quality. In addition, all user conditions were met in accordance with IEC and UL standards.
LS Electric Manual Motor Starter, Series: Metasol Series, 32 A, 690 V, 50/60 Hz, 4 kA, 10 kA, 25 kA, 50 kA, 100 kA Interrupt Rating, 3 Poles, 32AF Frame, Screw Terminal, IP20 Enclosure, 18 to 8 AWG, 18 to 10 AWG Wire, DIN Rail, Screw Mounting, 100000 cycles Operating Cycles, -20 to 60 deg C, 45 mm Width, 94 mm Height, 99.6 mm D, High Breaking Capacity, Rotary Handle
| Additional Information | : | 99.6 mm D, High Breaking Capacity, Rotary Handle |
| Amperage Rating | : | 32 A |
| Enclosure Type | : | IP20 |
| Frame Type | : | 32AF |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 94 mm |
| Interrupt Rating | : | 4 kA, 10 kA, 25 kA, 50 kA, 100 kA |
| Mounting Type | : | DIN Rail, Screw |
| Number of Poles | : | 3 |
| Operating Cycles | : | 100000 cycles |
| Series | : | Metasol Series |
| Temperature Rating | : | -20 to 60 deg C |
| Terminal Type | : | Screw |
| Voltage Rating | : | 690 V |
| Width | : | 45 mm |
| Wire Size | : | 18 to 8 AWG, 18 to 10 AWG |
- New application of MMS-32/63 trip indicator enhances the visibility of trip
- Reinforced breaking reliability compared to existing -MEC MMS
- Same external dimension with -MEC MMS
- Consistency with sol MC by changing appearance color
- Over load
- Short circuit
- Phase failure protection
Catalog
